466. LKA Ego lateral movement introduction

The Lane Keeping Assist (LKA) Ego lateral movement library components are located in $FTX_PACKAGES/adas/lss/lka/scenarios/ego_lateral_movement as shown in Figure 1.

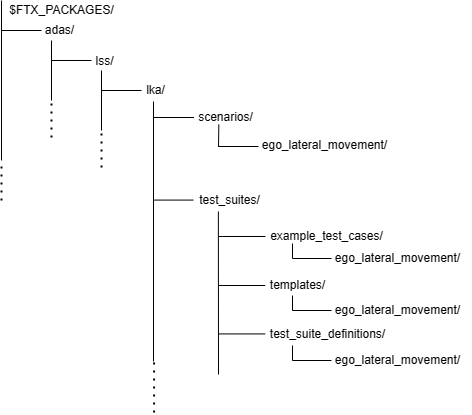

Figure 1: LKA Ego lateral movement directory structure
Directory/File Description
test_suites A directory that contains the following folders to execute multiple tests:
  • The test_suite_definitions folder contains the CSV files for executing LKA Ego lateral movement tests with FRun
  • The templates folder is used to generate tests to be executed with FRun
  • The example_test_cases folder contains test cases to run the LKA Ego lateral movement scenarios
scenarios A directory containing the OSC2 source files for each scenario

466.1 Running a regression

To run a set of tests with FRun:

  1. Invoke FRun in batch mode with all the CSV files required for the set of tests that you chose.

    For example:

    frun --csv $FTX_PACKAGES/adas/lss/lka/test_suites/test_suite_definitions/ego_lateral_movement/lka_lane_departure.csv
 --csv $FTX_PACKAGES/adas/lss/lka/test_suites/test_suite_definitions/ego_lateral_movement/lka_lane_departure_main.csv
 --csv $FTX_PACKAGES/common/csv/sim_manually_driven_kinematic_config.csv
 --csv $FTX_PACKAGES/common/csv/new_map_config.csv
 --batch

  2. Review the regression results in the default work directory.

    ~/foretify/sessions/<timestamp>/<timestamp>/
