458. ELK Oncoming vehicles introduction

The Emergency Lane Keeping (ELK) Oncoming vehicles library components are located in $FTX_PACKAGES/adas/lss/elk/scenarios/oncoming_vehicles as shown in Figure 1.

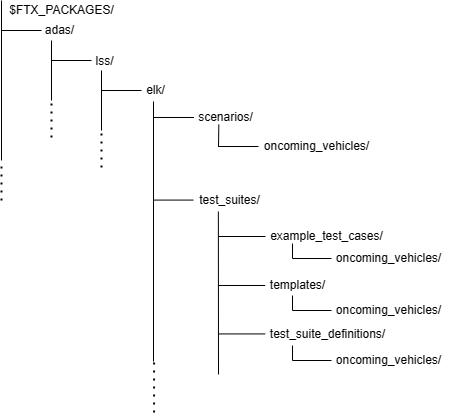

Figure 1: ELK Oncoming vehicles directory structure
Directory/File Description
test_suites A directory that contains the following folders to execute multiple tests:
  • The test_suite_definitions folder contains the CSV files for executing ELK Oncoming vehicles tests with FRun
  • The templates folder is used to generate tests to be executed with FRun
  • The example_test_cases folder contains test cases to run the ELK Oncoming vehicles scenarios
scenarios A directory containing the OSC2 source files for each scenario

458.1 Running a regression

To run a set of tests with FRun:

  1. Invoke FRun in batch mode with all the CSV files required for the set of tests that you chose.

    For example:

    frun --csv $FTX_PACKAGES/adas/lss/elk/test_suites/test_suite_definitions/oncoming_vehicles/elk_lane_departure_oncoming.csv
 --csv $FTX_PACKAGES/adas/lss/elk/test_suites/test_suite_definitions/oncoming_vehicles/elk_lane_departure_oncoming_main.csv
 --csv $FTX_PACKAGES/common/csv/sim_manually_driven_kinematic_config.csv
 --csv $FTX_PACKAGES/common/csv/new_map_config.csv
 --batch

  2. Review the regression results in the default work directory.

    ~/foretify/sessions/<timestamp>/<timestamp>/
