66. Analyzing metrics

The VPlan tab of the Workspace window helps you analyze both the coverage and performance metrics captured in test suite results.

As shown in Figure 1, the left pane of the VPlan tab displays the coverage and performance metrics in the context of a verification plan (VPlan). When you select a metric item, details about that item are displayed in the Buckets pane to the right.

To open the VPlan tab:

1. From a project, click the Workspaces tab and select a workspace.

   The VPlan tab opens by default.

2. You can perform the following tasks in the VPlan tab:

   • Review the key concepts related to metrics
   • Select VGrade calculation method
   • Identify coverage holes
   • Modify filters and tags
   • Rank runs
   • Compare metrics across test suites
   • View global metrics

66.1 Review the key concepts

Metrics collected during test execution are used to answer two critical questions: how well was the SUT tested, and how well did the SUT perform within these tests. The first question is answered by the coverage grade, the multi-dimensional representation of all situations encountered during testing. The second question is answered by the collection of Key Performance Indicators (KPIs). Both types of metrics are displayed using the framework of a VPlan.

The VPlan is a hierarchical machine-readable file (JSON format) that describes the SUT behaviors you want to verify. A VPlan might have, for example, top-level sections such as:

• Scenarios
• Driving areas
• Regulatory criteria
• Risk dimensions
• Autonomous functions

Each of the sections has sub-sections. For example, the Scenarios section might have a section for every scenario in a library, each with its own nested sub-sections for lower levels of scenario hierarchy such as scenario phases, group sampling events, and coverage items.

Similarly, a metrics model is a machine-readable hierarchical representation of the metrics defined in a test suite. Given a VPlan, a metrics model and test suite results, Foretify Manager is able to map the data collected during the runs to the VPlan. You can control the metrics model used to calculate the coverage grade. See details.

The VPlan tab of the Workspace window displays the VPlan annotated with metrics data collected during the runs. The overall grade, displayed in the top left, is calculated based on the individual grades for all items in the metrics model. Each section and sub-section has a grade shown as a percentage and as a scale. The colors red, yellow and green are used to indicate entities with low, medium and high grades, respectively.

66.1.1 View buckets as list

When you select a metrics item, a list of possible values appears in the pane to the right of the VPlan tree. If the range of values is large, they are grouped into ranges (called buckets) for easier viewing. The coverage data for each bucket is displayed in the Buckets widget.

Each bucket includes the starting value but excludes the ending value — for example, the bucket [30..40] includes values from 30 up to, but not including, 40.

In the list view:

• The number of hits for each bucket is displayed using different colors to indicate No hits, Below target, or Reached target.
• Any bucket with "No hits" is considered a coverage hole and should be addressed either by adjusting test parameters to fill those buckets or by removing them from the coverage definitions.

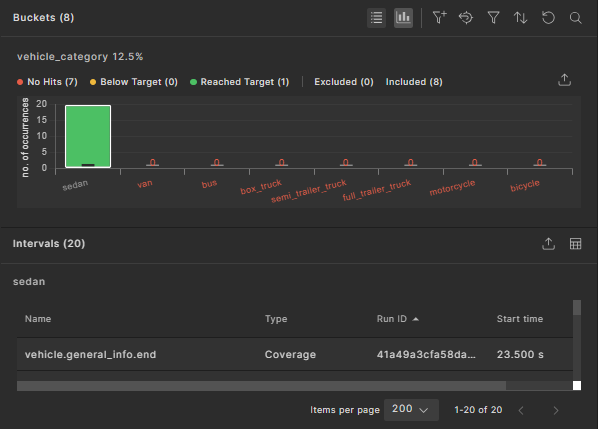

• Click a bucket to display the Intervals table below the buckets list. In this table, you can:
  • Customize columns.
  • Export the table content to a CSV file.

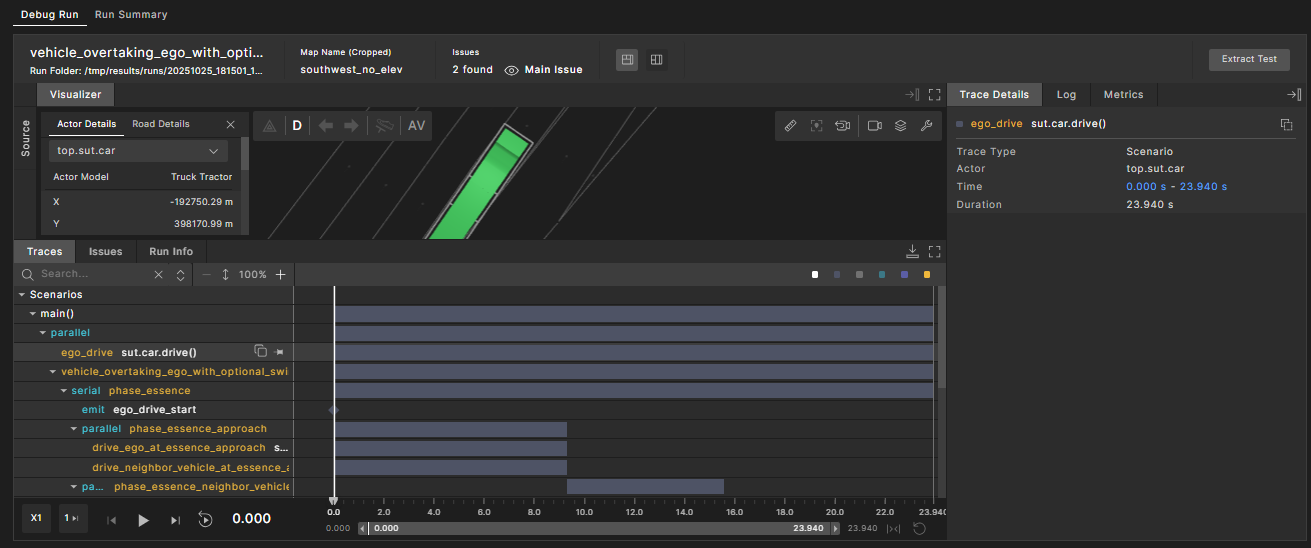

  • Click an interval to navigate to the debugger view where this coverage was recorded. This view shows the matching interval or the parent scenario, making it easier to identify and fix coverage holes.

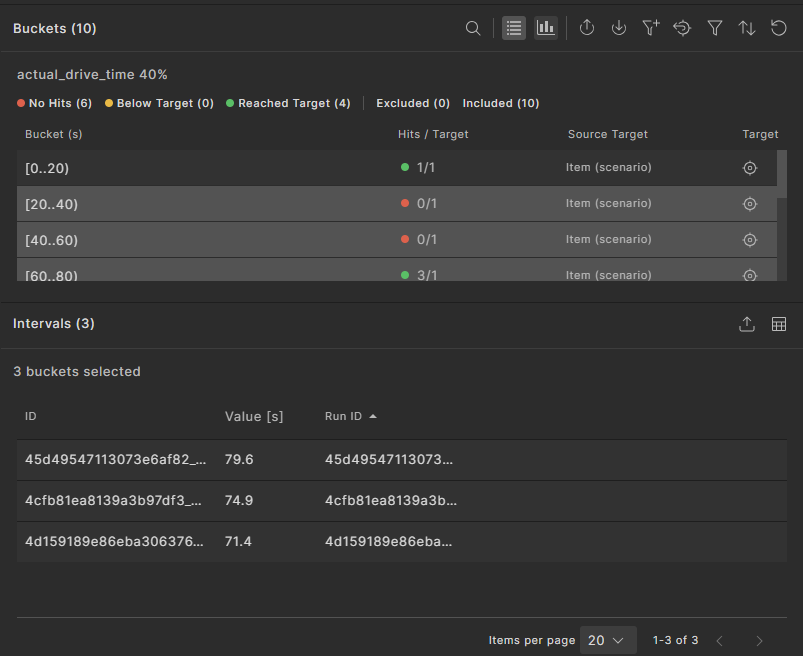

• You can select multiple buckets to view the associated intervals. To do this, press and hold the CRTL (or CMD on Mac) key and click each required bucket.



66.1.2 View buckets as histogram chart

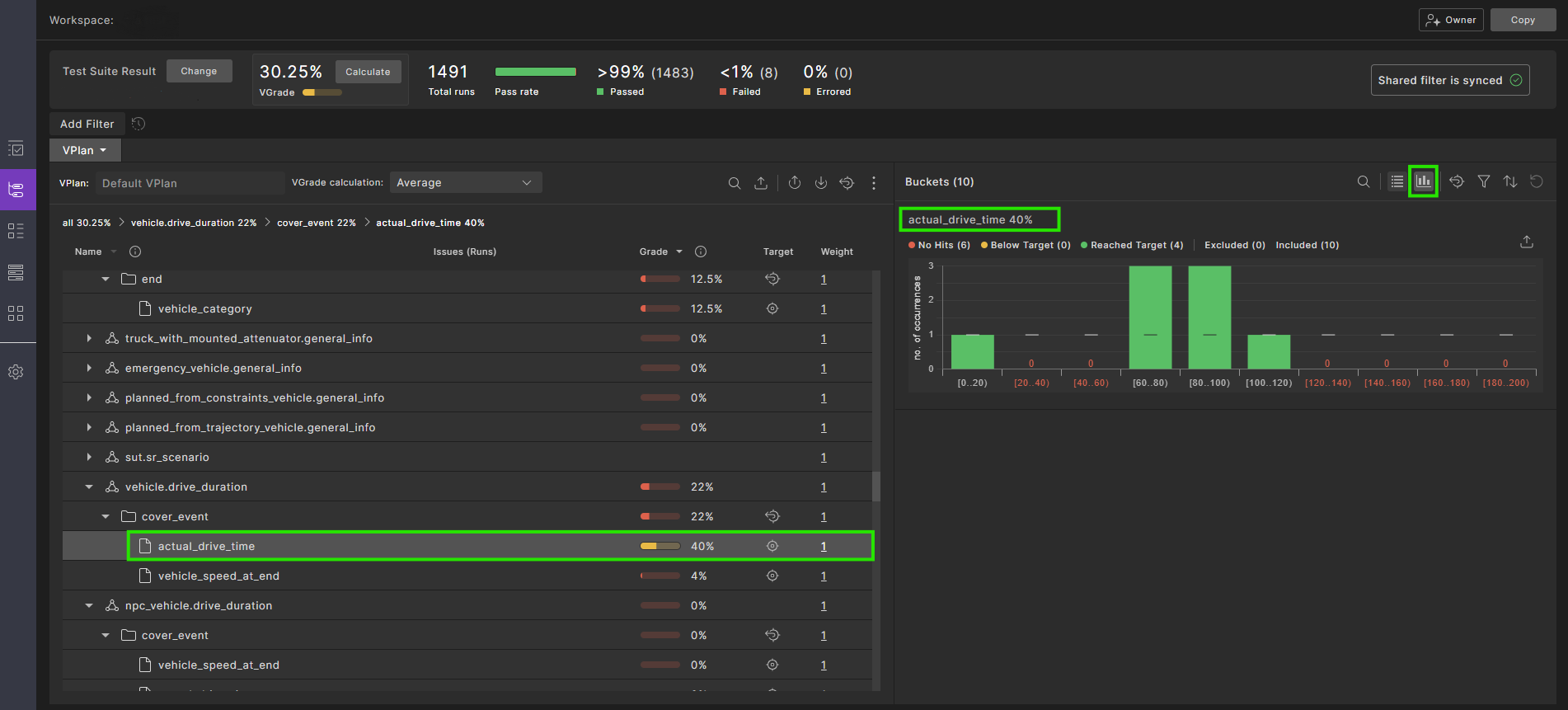

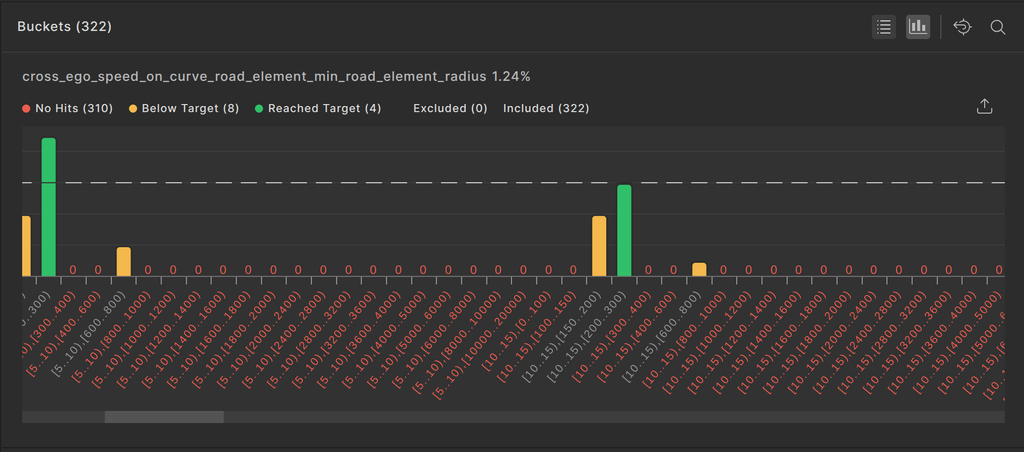

You can view the bucket data in a histogram chart. To open the chart, click the View buckets as histogram chart icon.

In the histogram view:

• The x-axis represents the bucket names, and the y-axis represents the hit count.
• Each bucket has a target, displayed in a horizontal line.
• For each bucket:
  • If no hits exist, a red label with 0 appears.
  • If the hit count is greater than 0 but does not reach the target, the bucket bar is yellow, indicating Below target.
  • If the hit count meets or exceeds the target, the bucket bar is green, indicating Reached target.
• To export the histogram chart as a table (csv file), click the Export to table format icon. All buckets are included in the export, regardless of which ones are visible in the UI.

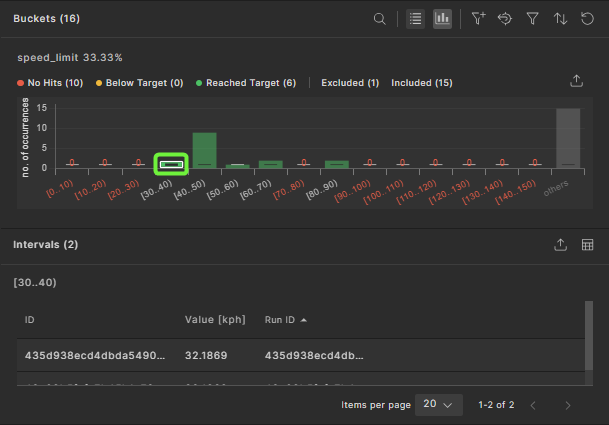

• Click a bucket to display the Intervals table below the histogram chart.



  In this table, you can:

  • Customize columns.
  • Export the table content to a CSV file.
  • Click an interval to navigate to the debugger view, where this coverage was recorded. The view shows the matching interval or the parent scenario, making it easier to fix coverage holes.

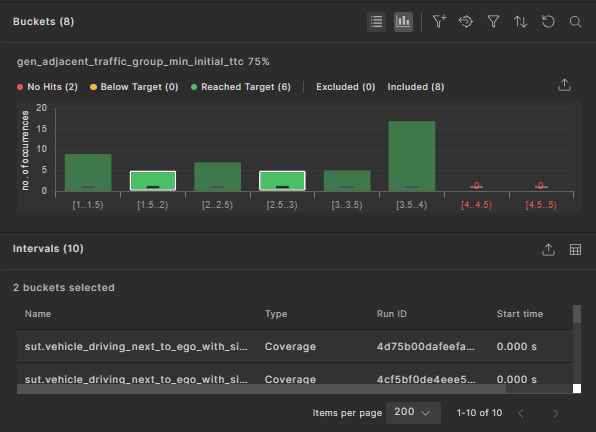

• You can select multiple buckets to view the associated intervals. To do this, press and hold the CRTL (or CMD on Mac) key and click each required bucket.



66.2 Sort display of metric items

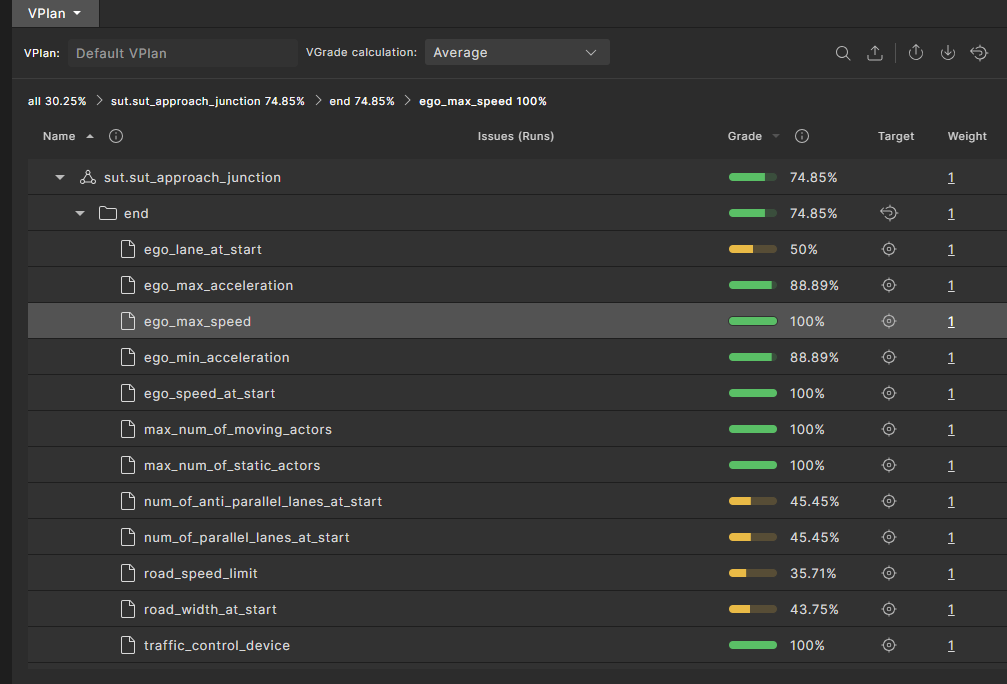

The Metric items within a specific metric group can be sorted in ascending or descending order, according to Name or Grade.

Click the sort icon next to the Name or Grade headings to sort the items. The icon toggles the order each time it is clicked.

66.3 Select VGrade calculation method

You can select one of three different methods for calculating the VGrade of the workspace (the gradable nodes in the VPlan):

• Average: the VGrade, relative to the averaging grade scheme. Each node is graded as the arithmetic average of the grade of its child-nodes. Buckets are graded as "1" if their hits reached their target, and "0" otherwise. This is the standard VGrade.
• Binary aggregation: The VGrade, relative to the bucket grade scheme. Each node is graded as the proportion of filled buckets (hits >= target) out of the total buckets under it (the bucket predecessors). For the entire workspace, this is simply the proportion of the filled buckets out of the total number of buckets in the entire VPlan.
• Progressive aggregation: The VGrade, relative to the progressive bucket grade scheme. This method is similar to the bucket grade scheme except it takes into account partially filled buckets. Each node is graded as the proportion of hits in the bucket predecessors out of the total targets, while hits over the target are ignored.

To select the VGrade calculation method:

1. In the workspace's VPlan tab, click the dropdown list next to VGrade calculation.

2. Select the calculation method you want from the dropdown list. Options include Average, Binary aggregation, and Progressive aggregation. See examples of these methods.

66.3.1 Example VGrade calculations

In this sample test suite, there are two items: ego_road_element_min_lanes and ego_road_element_max_lanes. The bucket targets for each item are given below:

The ego_road_element_min_lanes item with a bucket target of 1:

The ego_road_element_max_lanes item with a bucket target of 2:

Average VGrade

VGrade = (60 + 40) / 2 = 50%

Binary aggregation VGrade

VGrade = fulfilled buckets / total buckets = (2 + 3) / (5 + 5) = 5 / 10 = 50 %

Progressive aggregation VGrade

VGrade = contributing hits / total targets = ([1 + 0 + 1 + 0 + 0] + [1 + 0 + 1 + 1 + 0]) / ([15] + [12]+1+1+1+1) = (3 + 3) / (5 + 6) = 6/11 = 54.55%

66.4 Identify coverage holes

1. In the VPlan tab, exclude any sections of the VPlan that do not contribute to the coverage grade:

   1. Select the sections.

   2. Click the Exclude Selected Items icon in the top right of the VPlan tab.

      The overall coverage grade is increased and the Exclude icon appears near the grade scale for each excluded entity. You can re-include them by selecting them and clicking the Include Selected Items icon in the top right of the VPlan tab.

2. Select an item with a low grade:

   1. If you know the name of the item you want to inspect, click the Search icon in the top right of the Sections pane and enter the item’s name.

   2. If you do not know the item’s name, click a section with a low grade and keep drilling down until you can click an item with a low grade.

      A Buckets pane appears in the VPlan tab displaying a list of buckets for that item. For example, for an enum such as av_side, two buckets are displayed, right and left, with the number of hits for each side.

3. Review the number of hits for each bucket to determine how to constrain the test to fill the coverage hole or how to remove it from the coverage definitions.

66.4.1 Understand item and bucket targets

The target of an item or bucket specifies the minimum number of hits the attached runs need to achieve for that bucket to be marked as complete.

The target value that is considered when grading is the bucket target if specified (in the scenario code or interactively in Foretify Manager). If not specified, the item target takes effect. If neither bucket target nor item target is specified, the target is 1.

66.4.2 Change item and bucket targets

Without having to re-run the test suite, you can change the target of an item or bucket in the VPlan tab of the Workspace for the number of coverage hits (samples) required to consider the coverage complete. This setting is displayed as the target instead of the target that was defined in the OSC2 coverage model.

66.4.2.1 Update the target for a node in the VPlan

Use the following steps to update an item's grade.

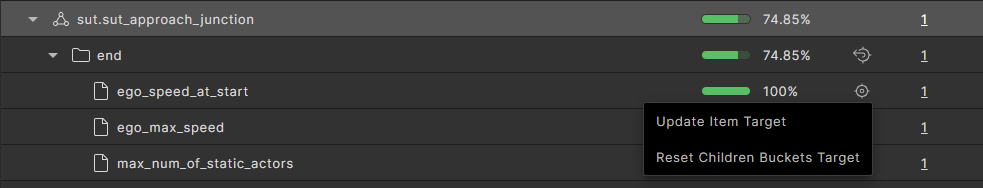

1. Click the Item Target icon. Result: The drop-down menu is displayed.

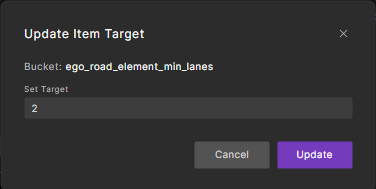

2. Click Update Item Target. Result: The Update Item Target widget is displayed.
3. Enter a positive integer in the Set Target field, then click Update. Result: The item's grade is updated.

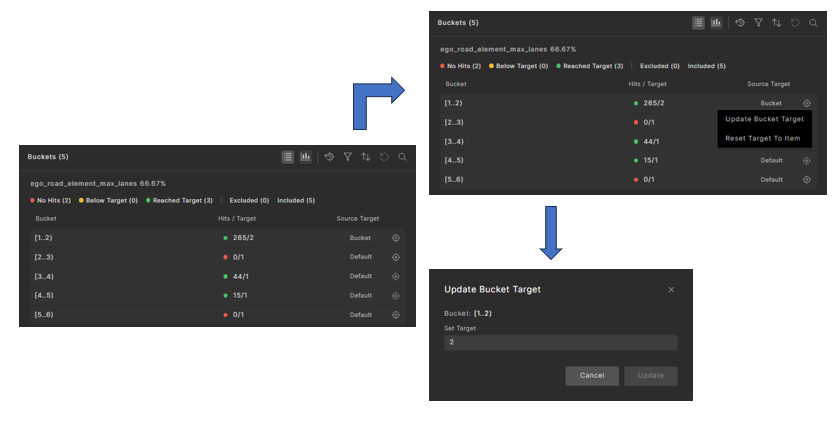

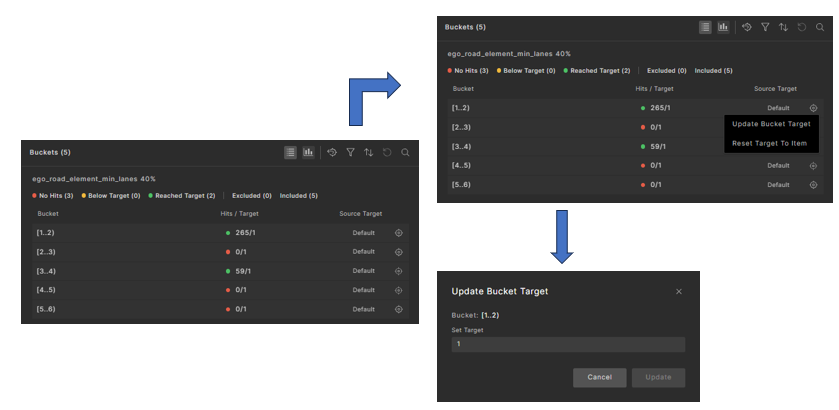

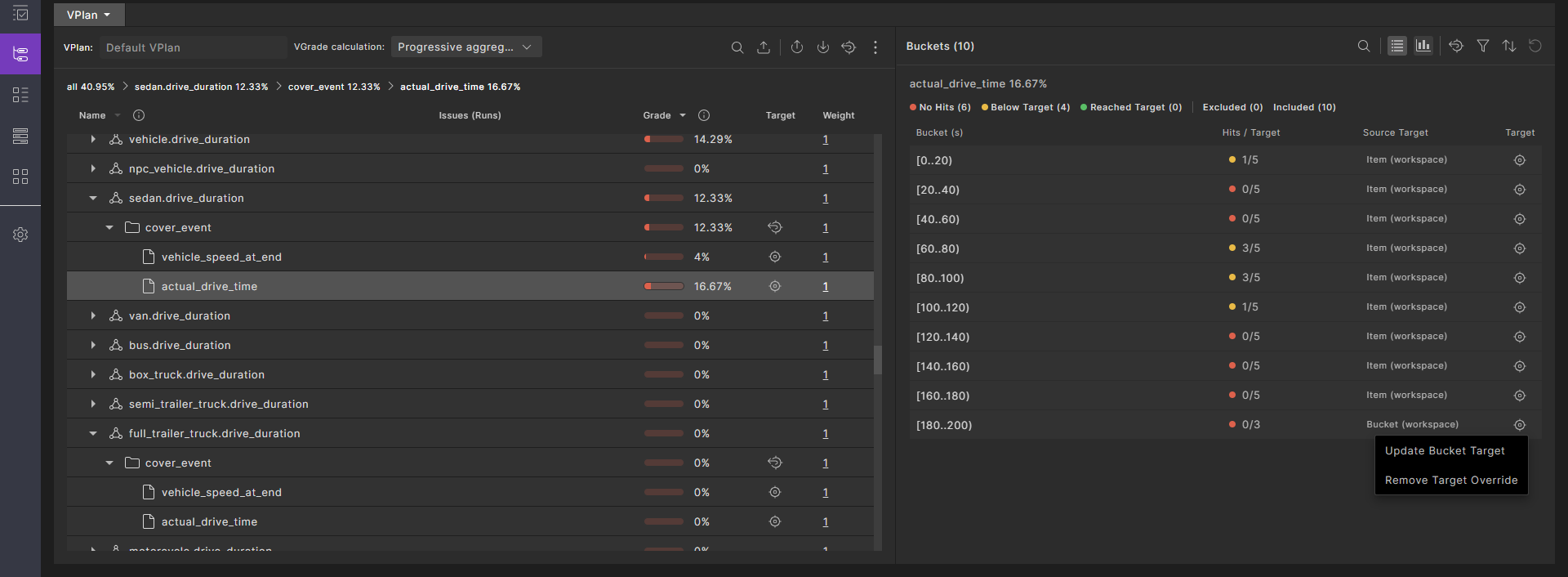

You can update a bucket's grade in a similar way by selecting "Update Bucket Target" from the "Bucket Target" drop-down menu option.

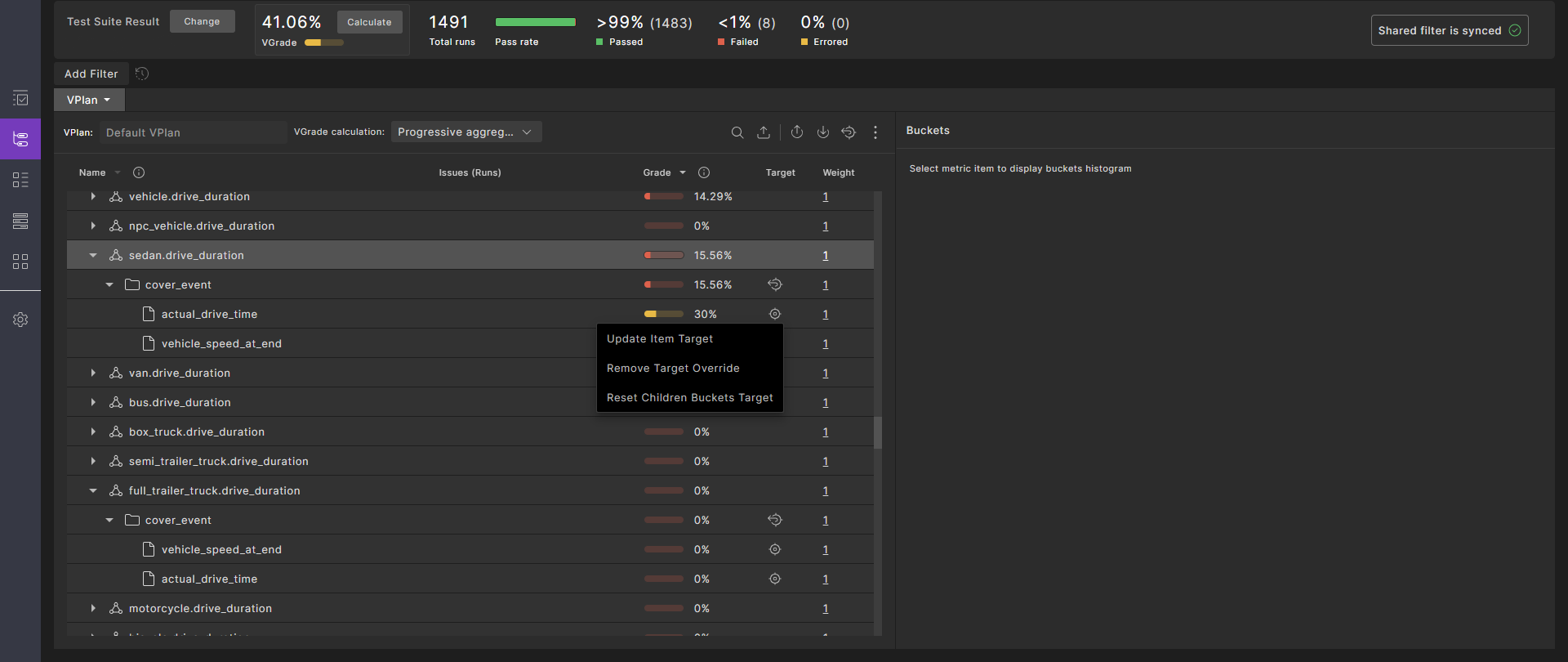

66.4.2.2 Reset the target for a node in the VPlan

Use the following steps to revert an item's grade.

1. Click the Item Target icon. Result: The drop-down menu is displayed.
2. Click Reset Target To Default. Result: The updated target for this item is undone, and the target is reverted to the parent value (default for an item).

You can revert a bucket's grade in a similar way by selecting Reset Target To Item" from the Bucket Target** drop-down menu options.

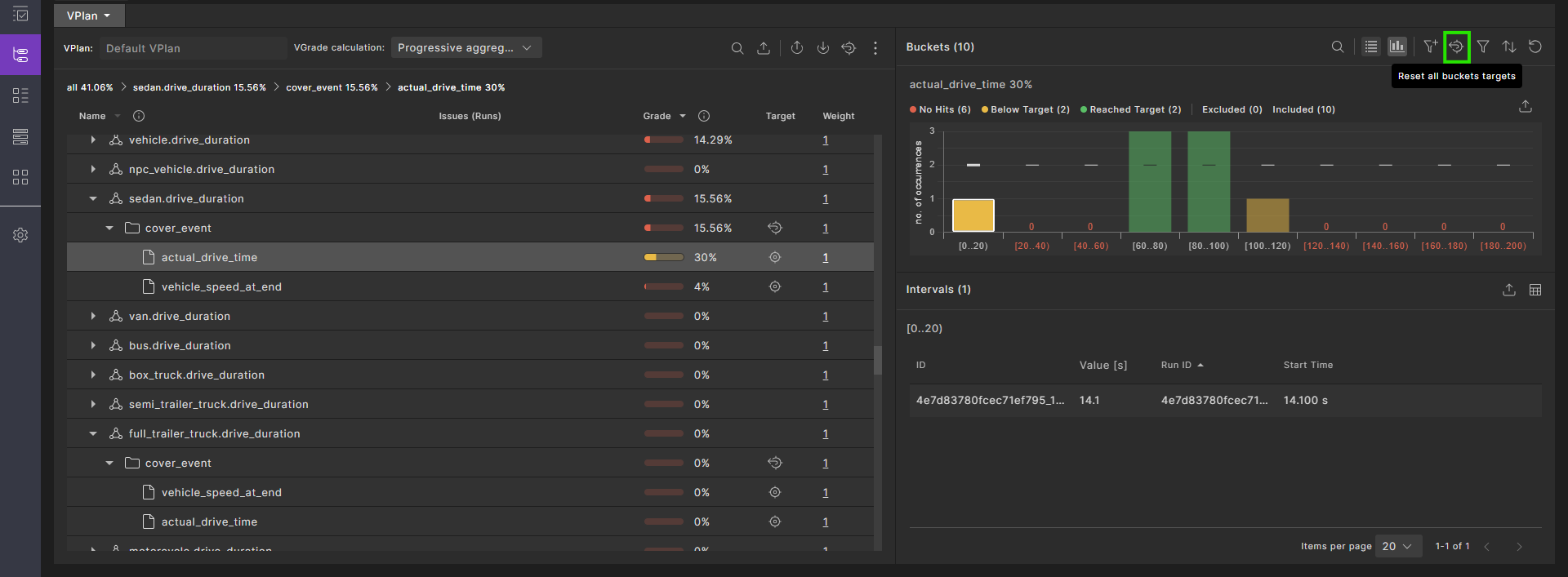

66.4.2.3 Reset the targets for all child buckets

This is applicable only to items.

1. Click the Item Target icon. Result: The drop-down menu is displayed.
2. Click Reset Children Buckets Target. Result: The targets for all buckets related to this item are reset. If an item target exists, it is reverted to the parent value. If no item target exists, the bucket's target is set to the default value.

66.4.2.4 Reset the targets for all items in a group

Click on the Reset Children Items Target icon in the group node of the VPlan tree.

The item target values are reset. Buckets with their own targets remain unchanged, while buckets with inherited targets are reverted to the default value.

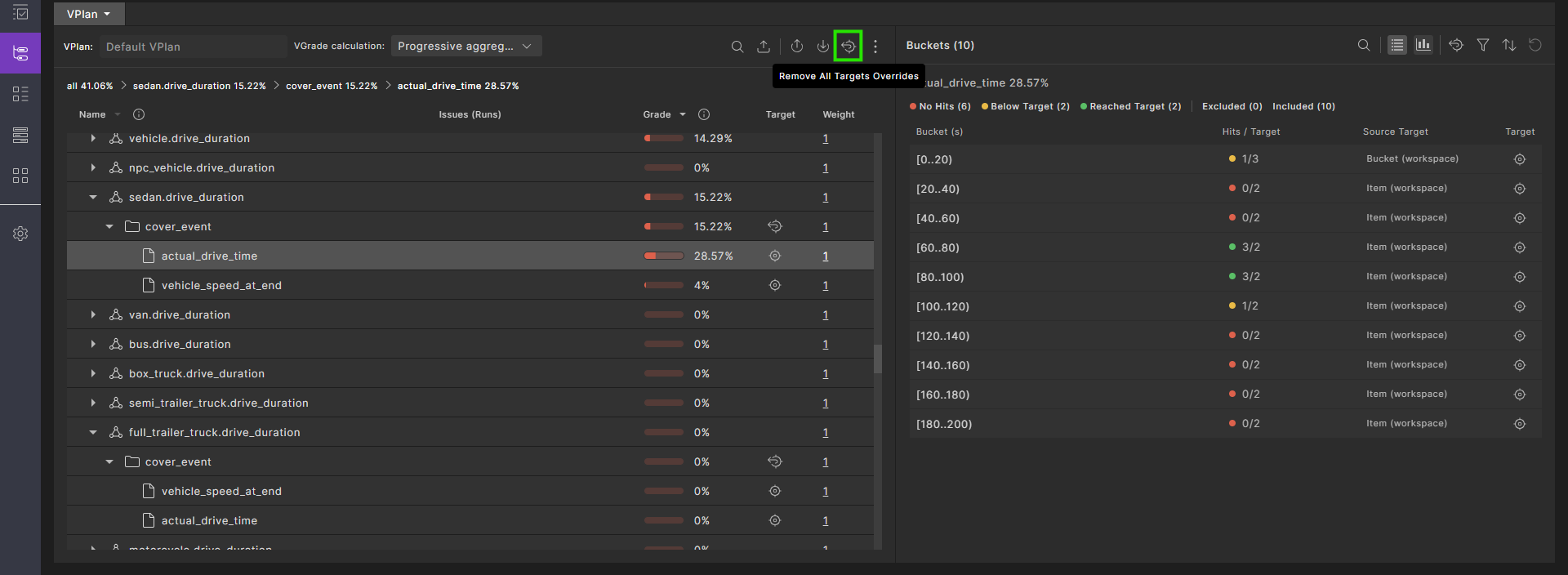

66.4.2.5 Reset the entire VPlan tree targets to default

1. Click the Item Target icon. Result: The drop-down menu is displayed.
2. Click Reset Children Buckets Target.

All item-level and bucket-level targets are reset to their default values.

66.4.3 Filter and sort buckets

You can filter and sort the buckets displayed in the Bucket pane using the icons at the top right of the pane. You can also exclude or include selected buckets.

See also Filter runs by bucket values.

66.4.4 Record item hits

Record metric items (KPIs), marked with a meter icon and located under their associated event, capture data or metrics during the scenario execution. Record items do not contribute to coverage (i.e. they do not affect the VGrade).

The list of record hits can be very long, as hits may occur multiple times during a run over the entire test suite result. Therefore, only the first 100 uploaded hits are retained for a record item in the VPlan.

To retrieve all the Record item hits, you can iterate over the test suite result runs and extract them using the SDK. For more information, see get_item_buckets().

66.5 Modify filters and tags

In the VPlan, Runs, and Intervals tabs of the Workspace, you can create three kinds of filters:

• Run filters let you filter runs based on run attributes such as Status or Main Issue Category.

• Metric filters let you filter VPlan items based on their group sampling event.

• Interval filters let you filter intervals based on the provided data.

66.5.1 Create a run filter

In the Runs tab, you can filter runs based on your requirements. For more information, see Creating and publishing filters in workspaces.

66.5.2 Delete run or item filters

To delete all current filters, click the Remove All Filters (Delete) icon.

66.5.3 Filter runs by bucket values

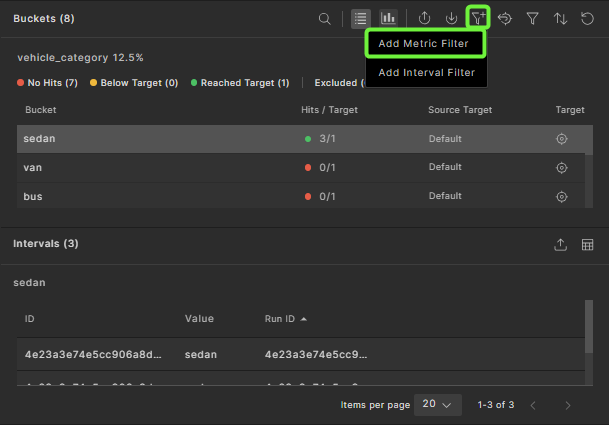

You can also filter runs using the bucket values for a selected item.

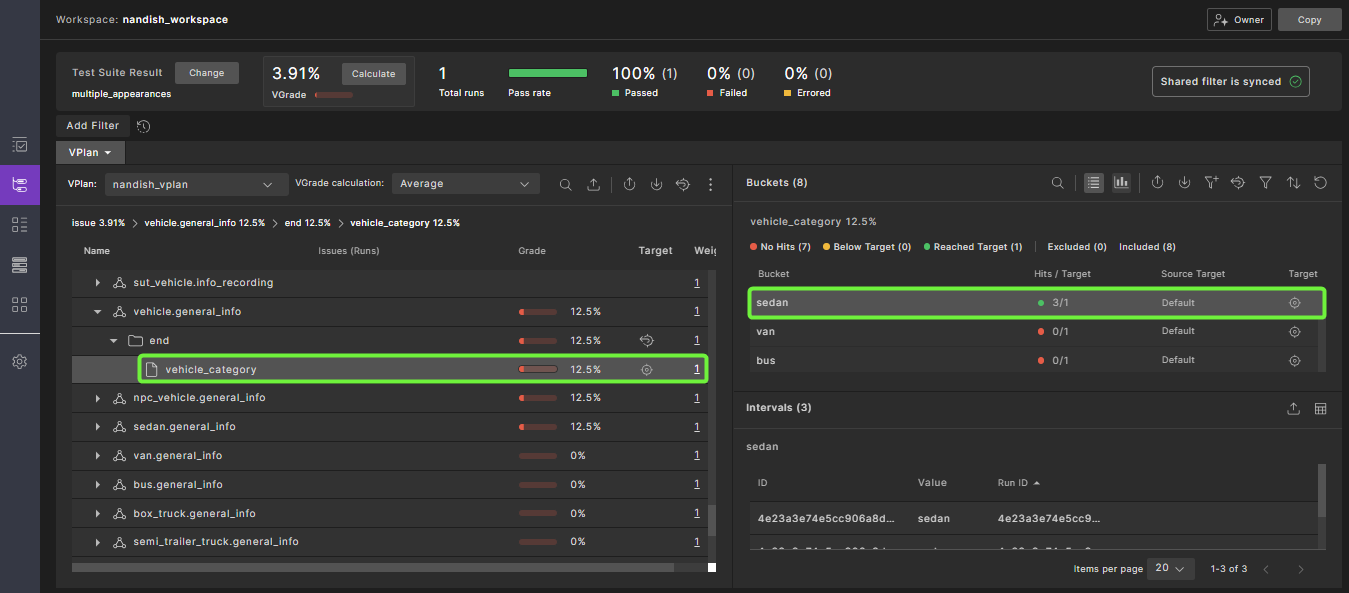

To view runs with the same value for a particular bucket:

1. Click the name of an item in the VPlan.

2. In the Buckets pane, select the bucket value for the runs you want to see.



3. Click the Add to Filters icon.

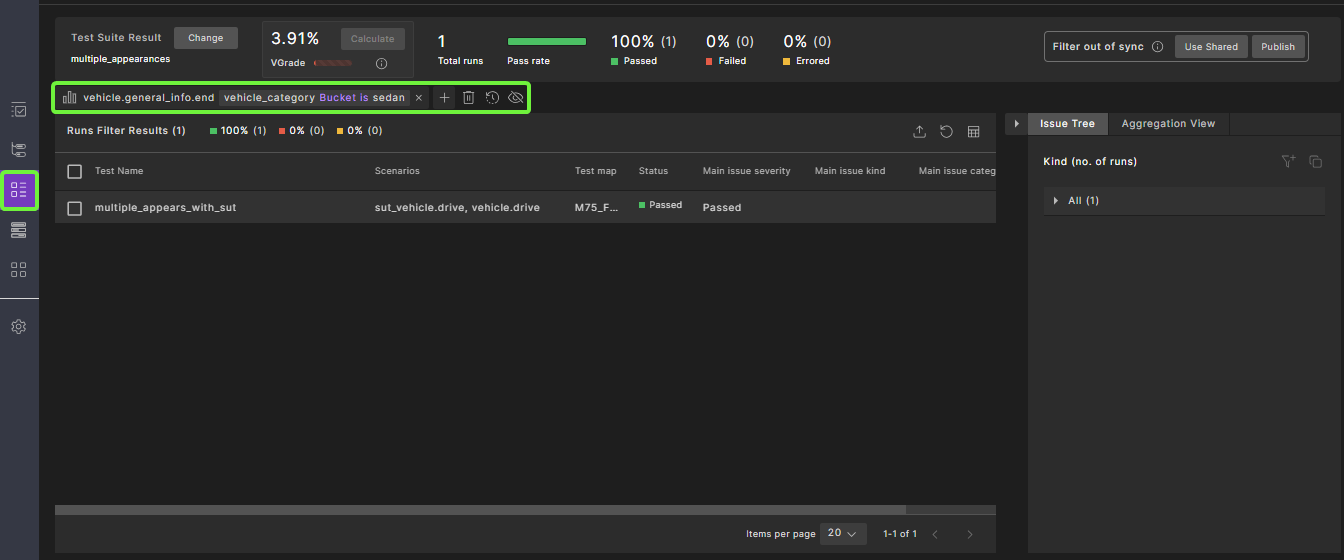

4. Click the Runs tab to view the runs with the specified bucket value.



66.5.4 Create or delete VPlan attribute filters

VPlan attribute filters let you selectively view VPlan sections based on attribute values. For example, you can do the following:

• In the VPlan Editor, create a custom attribute, such as MATURITY_LEVEL, with appropriate predefined values such as high, medium and low, or 1, 2 and 3. See Create a custom VPlan attribute.

• In the VPlan Editor, apply the attribute with a specific value to each appropriate VPlan section. See Modify section attributes.

• In the workspace, filter the VPlan to see sections with a specific maturity level. This task is described below.

To apply a VPlan attribute filter:

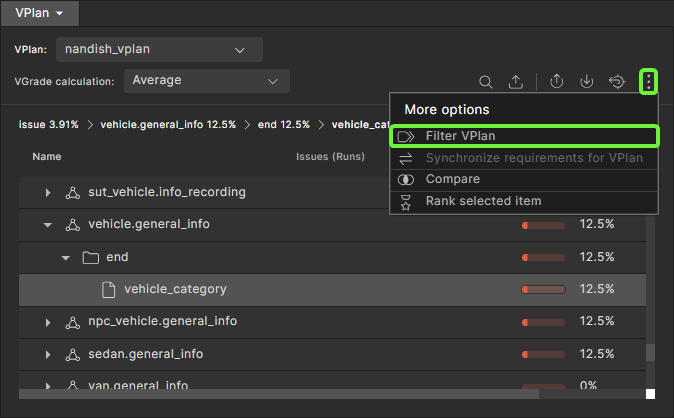

1. In the VPlan view, click the vertical ellipsis icon, and then select the Filter VPlan icon.

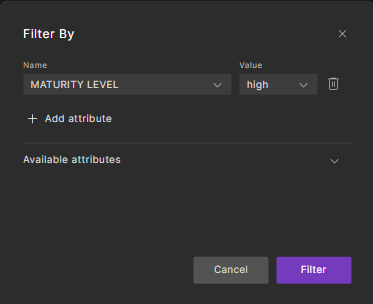

   The Filter by dialog box appears.



2. Click Add Attribute.

3. In the Available attributes list, select the attribute you want to filter by, and then select its value.



4. Click Filter.

   The sections with the attribute value you entered are displayed in the VPlan tab.

To delete a VPlan attribute filter:

1. Click the Filter VPlan icon.

   The Filter by dialog box appears.

2. Click the Trash icon next to the filter you want to delete.

3. Click Filter.

66.5.5 Create a tag

When you create a tag, the runs selected by the current set of filters are tagged with the specified name. You can now filter the Runs window to find runs with the specified tag.

To create a tag from the Current tab of the Filter pane:

1. Click the Create Tag icon on the top right of the Filter pane.
2. Type a name in the box and press Enter.

To create a tag from the History tab of the Filter pane:

1. Click the Tag icon.
2. Select the date and time the filter was created from the list.
3. Type a name in the box and press Enter.

66.5.6 Restore a filter or tag

To restore a previously created (but not tagged) filter:

1. Click the History tab in the Filter pane.
2. In the chronological list, click the date and time of the filter you want to see.
3. Click Apply.
4. Click Annotate.

66.6 Rank runs

The ranking feature answers the following question: given a metric (or a collection of metrics represented by a section/scenario/group) and its coverage grade, what is the minimal subset of runs required to achieve this coverage grade?

The results of ranking is a list of runs with an additional attribute called Cumulative Grade. This is the minimal subset, showing how they contribute to the related coverage grade.

You can use this feature to reduce computing resources.

1. In the VPlan tab, select the coverage section, scenario or group whose runs you want to rank.

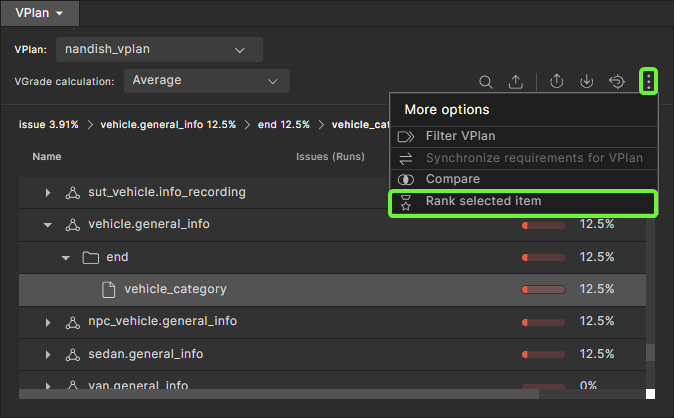

2. Click the vertical ellipsis icon, and then select the Rank selected item icon.

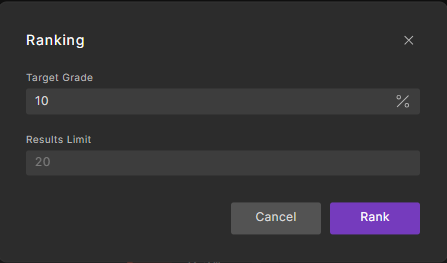

3. In the dialog box, type in the target for the ranking, either the cumulative grade to be reached (in the field labeled Target Grade) or the number of runs to be included (in the field labeled Results Limit).



4. Click Rank.

   The Rank tab opens, with an indicator showing the progress of the ranking operation. You have the option of clicking the Stop button if you don't want to wait for the ranking to finish.

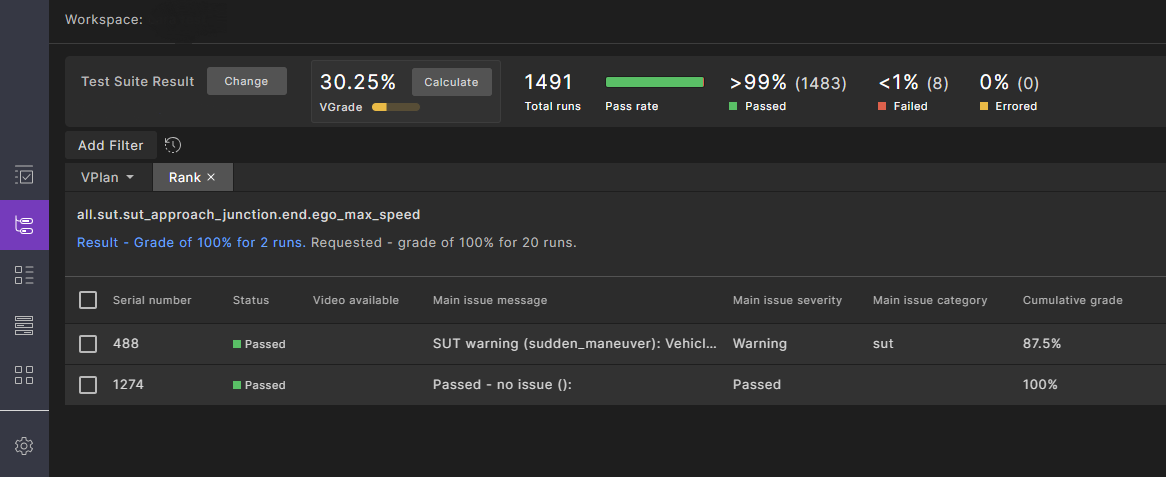

5. When the Rank tab appears, review the summary at the top and the list of runs.

   The summary shows the resulting grade and number of runs along with the requested grade and number of runs.



6. To export a CSV file in a format that FRun can consume, click the Export icon and select Export to FRun Format. The CSV file appears in your Downloads folder.

66.7 Export workspace result in JSON format

To export the workspace results, including the full VPlan tree with all items and bucket results, click the Export icon on the toolbar.

Workspace result example:

id: "43399ea3ded3c9996cd4"
name: "eran_componnd_bug_bash"
vplanTemplateId: null
metricModelId: "4718b3a79c59ec6b77ca"
runsFilter: { logicalOperator: "AND", elements: (1)[…] }
grading { averagingGrade: 0, bucketGrade: 0, progressiveBucketGrade: 0 }
totalRunsCount: 20
description: ""
updateCoveragePerRunsStatus: "ALL_RUNS"
currentTimelinePointId: "46f39f80938047988023"
isUserViewAligned: true
lastPublishedBy: null
currentTimelinePointName:   "daily_bundle_develop_1679_dev_u22.04-6974705685614230402" calculatedVplanName: null
localTotalRunsCount: 0
localFailedRunsCount: 0
localErroredRunsCount: 0
localPassedRunsCount: 0
sections    { all: {…} }

66.8 Control the metrics model used to calculate the coverage grade

By default, the coverage grade of the selected test suite result is calculated based on the metrics defined in scenarios that were simulated by the most recent test suite result uploaded to the workspace. There may be cases where you need to calculate the coverage grade of a test suite result based on a different (manually selected) metrics definition. For example, you might want to evaluate the coverage grade of an older test suite result, based on the metrics model that was created for that same test suite result.

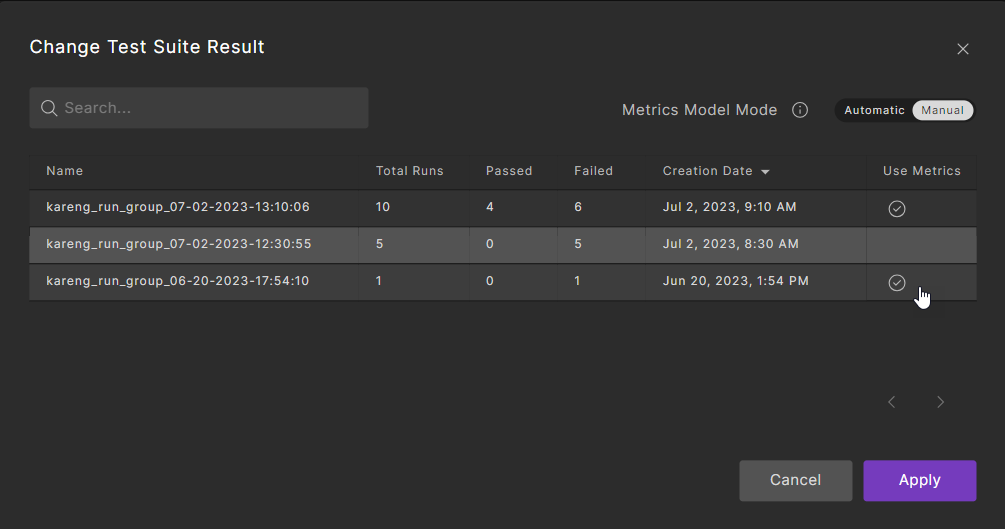

To set the metrics model used to calculate the coverage grade:

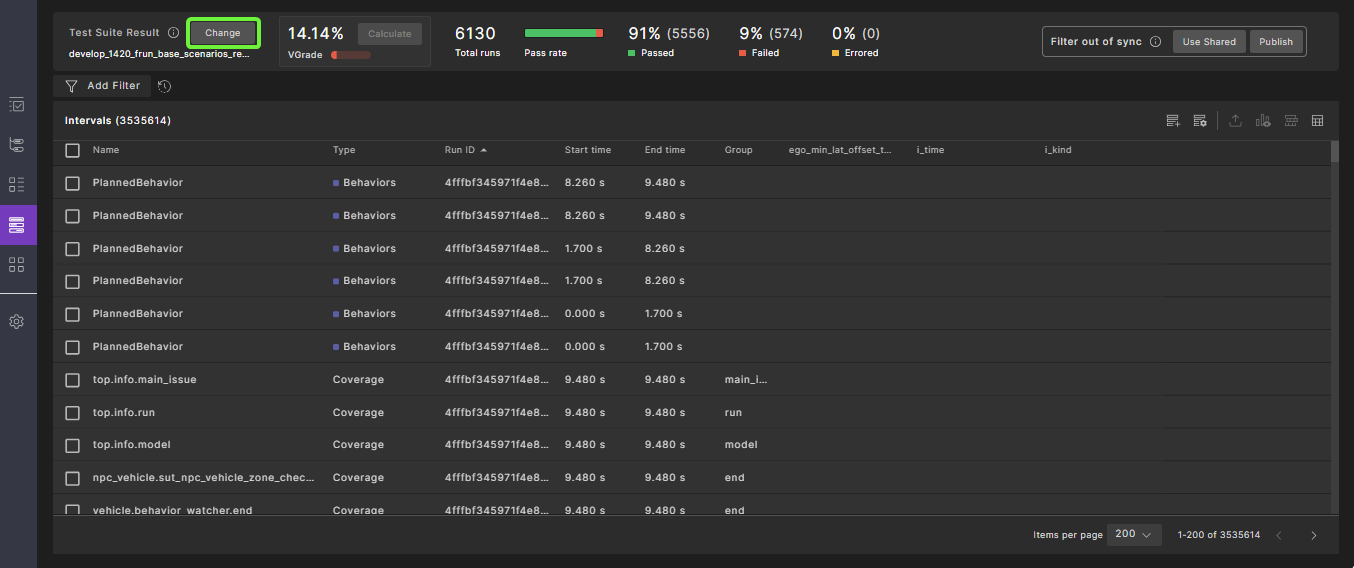

1. Click the Change button located in front of Test Suite Result.

   The Change Test Suite Result dialog is displayed with a list of the test suite results in the workspace. Here, the Use Metrics column shows which test suite result metric model is used to calculate the VGrage. In Automatic mode, changing the selection under the Use Metrics column is disabled. In Manual mode, changing the selection is enabled.



2. Change the Metric Model Mode from Automatic to Manual.

3. Set the metrics model by clicking the checkmark next to the required test suite results for coverage analysis.



4. Click Apply.

5. Click Calculate to recalculate the coverage grade.

66.9 Compare metrics across test suites

You can compare a value of a metric, either coverage or KPI, across multiple test suites. This feature is useful when evaluating progress over time.

To compare metrics collected across multiple test suites:

1. If you want to compare only selected runs across test suites:

   1. Click the Show Filters icon on the top right of the VPlan.

   2. Create a filter or apply the appropriate tag for the runs that you want to see.

2. In the VPlan, select the node whose results you want to compare.

   Comparisons are performed recursively, so child nodes of the selected node are included in the comparison results. You can filter out irrelevant nodes later.

3. Click the Compare icon at the top of the VPlan.

   The Compare dialog box opens, displaying a list of test suites to choose from.

4. Select one or more test suites whose results you want to compare and click Compare.

   The Comparison tab opens, with an indicator showing the progress of the comparison. You have the option of clicking the Stop button if you don't want to wait for the comparison to finish.

   When the comparion completes, the tab shows the current test suite results in the Current column and the results of the test suites you selected in the following columns.

   By default, the comparison is filtered to show items or aggregations that differ more than 0%.

5. (Optional) To change the filter, click the Filter Results icon at the top right of the Comparison tab.

   1. In the Filter Results dialog box, keep Show only diffs larger than selected and type in a different number.
   2. Turn off Show only items/aggregations to shows all types of items.

6. To export the comparison, click the Export to Table Format icon at the top right corner of the Comparison tab.

66.10 View global metrics

Global metrics are predefined attributes that are collected for every run in a test suite. They include:

• The SUT name and version
• The Foretify version
• The simulator name and version
• The map name and source location

These metrics are collected and categorized in the top.info struct accessible from the VPlan tab of the Workspace.

For a detailed description of these metrics, see Global metrics.

To view the global metrics:

1. In the VPlan tab, click the top.info node to expand it.

2. In the top.info section, click the model node to expand it.

   When sut_name is selected, the SUT used in the test suite is displayed with the number of runs for each one.

   When simulator_name is selected, the simulators used in the test suite are displayed with the number of runs for each one.

3. In the top.info section, click the run item to expand it.

   When map is selected, the maps used in the test suite are displayed with the number of runs for each one.
