424. ALCA Adjacent vehicles introduction

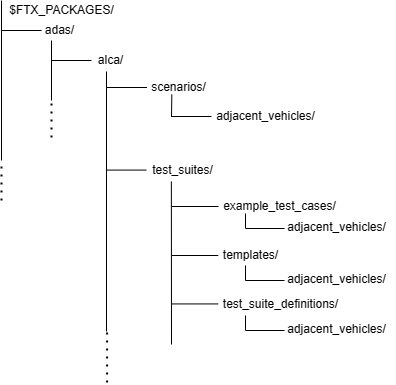

The Active Lane Change Assist (ALCA) Adjacent vehicles library components are located in $FTX_PACKAGES/adas/alca/scenarios/adjacent_vehicles as shown in Figure 1.

Figure 1: ALCA Adjacent vehicles directory structure
Directory/File Description
test_suites A directory that contains the following folders to execute multiple tests:
  • The test_suite_definitions folder contains the CSV files for executing ALCA Adjacent vehicles tests with FRun
  • The templates folder is used to generate tests to be executed with FRun
  • The example_test_cases folder contains test cases to run the ALCA Adjacent vehicles scenarios
scenarios A directory containing the OSC2 source files for each scenario

424.1 Running a regression

To run a set of tests with FRun:

  1. Invoke FRun in batch mode with all the CSV files required for the set of tests that you chose.

    For example:

    frun --csv $FTX_PACKAGES/adas/alca/test_suites/test_suite_definitions/adjacent_vehicles/alca_free_drive_with_neighbors.csv
 --csv $FTX_PACKAGES/adas/alca/test_suites/test_suite_definitions/adjacent_vehicles/alca_free_drive_with_neighbors_main.csv
 --csv $FTX_PACKAGES/common/csv/sim_manually_driven_kinematic_config.csv
 --csv $FTX_PACKAGES/common/csv/new_map_config.csv
 --batch

  2. Review the regression results in the default work directory.

    ~/foretify/sessions/<timestamp>/<timestamp>/
