440. ESA with traffic variants

  • Traffic on either side includes vehicle in Front Dynamic Area (FDA), Side Dynamic Area (SDA) or on both FDA and SDA. FDA is the area ahead of the ego where a vehicle is traveling in a lane next to the Ego's lane. SDA is the area behind the ego where a vehicle is traveling in a lane next to the Ego's lane and may overtake the ego at some point.

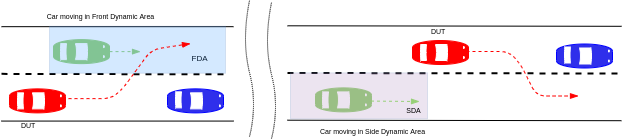

Figure 1: Neighboring vehicles in FDA or SDA

440.1 Coverage

Item Unit / Type Range Description
lon_distance_between_ego_and_
neighbor_vehicle_in_fda		 meter [0..20], every=4 Relative longitudinal distance between ego and neighbor_vehicle_in_fda before turn
lon_distance_between_ego_and_
neighbor_vehicle_in_sda		 meter [0..20], every=4 Relative longitudinal distance between ego and neighbor_vehicle_in_fda before turn
time_headway_from_fda Time headway between ego and car in fda
time_headway_from_sda Time headway between ego and car in sda
