Global checkers and metrics

Foretify provides various predefined checkers and metrics to help you determine whether the SUT is behaving as expected.

See also

ODD checkers

Global metrics (records)

Global metrics are attributes that are collected for every run in a test suite. They help you analyze the test suite by providing specific global information, such as simulator and map versions. Foretify records the global metrics for each run, and once your runs are uploaded to Foretify Manager, you can access and analyze the global metrics.

These metrics are defined in a global information struct, g_info and collected in the <run-dir>/coverage/runtime_data.json file for each run.

In Foretify Manager, you can see the metrics for a test suite by clicking on the top.info node in the VPlan. For more information, see View global metrics.

You can also define custom global metrics. See Add global metrics for more information.

g_info

The g_info struct is defined as follows:

OSC2 code: g_info struct declaration

extend g_info:
    var run: run_info
    var sim: sim_info
    var model: model_info
    var frun: frun_info         # not currently used

model_info

The model_info struct is defined as follows:

OSC2 code: model_info

struct model_info:
    var dut_name: string        # The name of the SUT used in the run
    set dut_name = "ftx_driver" # The initial value
    var dut_version: string     # The version of the SUT used in the run.
    set dut_version = "1.0"     # The initial value
    var foretify_version: string # The version of Foretify used in the run.

Foretify sets the SUT name and version based on the driver used to control the movements of the SUT:

• The ftx_driver (Foretellix Human Driver Model) controls both lateral and longitudinal movements of the SUT.
• The SUT_driver (the SUT) controls both lateral and longitudinal movements of the SUT.
• With a hybrid_driver, the Foretellix Human Driver Model controls either the lateral or longitudinal movements and the SUT controls the other.

You can override the default setting for the SUT name and version by extending the model_info struct like this:

OSC2 code: override default setting for SUT name and version

extend model_info:
    set dut_name = "XYZ"
    set dut_version = "4.1"

sim_info

The sim_info struct is defined as follows:

OSC2 code: sim_info declaration

struct sim_info:
    var connection_string: string   # The actual simulation connection string.

    var simulator_name: string      # The name of the simulator used in the run.
    var simulator_version: string   # The version of the simulator used in the run.

run_info

The run_info struct is defined as follows:

OSC2 code: run_info declaration

enum debug_mode: [
    none,            # No debug
    debug_record,    # Record mode (run simulation and record data)
    debug_replay     # Replay mode (no actual simulator)
]

struct image_info:
    var foretify_image: string
    var simulator_image: string
    var sut_images: list of string

struct package_info:
    pass

struct run_info:
    # Contains the path of the generated folder for the current run
    # Foretify overrides this field at the beginning of each test
    #
    var run_folder: string

    # Contains the debug mode
    # Foretify overrides this field at the beginning of each test
    #
    var debug_mode: debug_mode

    # If debug_mode == debug_replay, this field contains the replay folder
    # Foretify overrides this field at the beginning of each test
    #
    var replay_folder: string

    # Contain the seed of the current run
    # Foretify overrides this field at the beginning of each test
    #
    var seed: int

    # Contains the name of the test
    #
    var test_name: string

    # Contains the start time of the test
    #
    var start_time: string

    # Contains the path of the generated folder for the current build
    #
    var build_folder: string

    # Contains the names of docker images used in the current run
    #
    var images: image_info

    # Contains the versions of packages used in the current run
    #
    var packages: package_info

    def init() is also:
        images = new

Map checkers

When loading a map, the format of the map is checked. If any problems are detected, the map fails to load and you see a warning message:

Foretify output: map anomalies

"[0.000] [MSP] 56 map anomalies have been detected.
For details reload the map with debug verbosity"

The table below describes a few of the map checkers.

Info

You cannot configure or disable the map checkers. These anomalies make the map unusable for Foretify.

Check type	Map type	Description
Maximum distance between connected lanes	All	For any two connected lanes, the distance between the end of the first lane and the start of the connected lane is measured. If the distance is above a predefined threshold, a warning message is issued.
Lane connectivity	All	If a road has one lane connected to another road and one lane with no connection, the distance between the disconnected lane to all lanes in the next road is checked. If the distance is close enough, a possible missing connection is reported.
Zig-zag	OpenDrive	Check whether the lane geometry creates a improbable change in the angle.
Sub-sections sum	OpenDrive	If a road is split into several sub-sections, check that the sum of the lengths of all sub-sections is equal to the length of the entire road.

Resolution options

• The maps provided by Foretellix should load without error. If you encounter an error, notify Foretellix.

• If you are loading a proprietary map:

  • Run Foretify with --verbosity debug to see the full list of map anomalies.
  • Refer to Map format requirements for information on how to fix the map.

Global checkers for physical objects

Foretify checks for faulty behaviors of physical objects, such as a collision with another object.

These checkers are encapsulated into a global modifier called global_checkers:

OSC2 code: physical_object.global_checkers

global modifier physical_object.global_checkers

Global checkers for vehicles

Foretify checks for different faulty behaviors of a vehicle, such as driving off the road or at an unreasonable speed.

You can change the default values of these vehicle checkers and also modify their severity level.

Junction checkers

The junction checkers are a collection of watcher modifiers instantiated under a global modifier that creates intervals for interesting situations, such as traversing a junction or approaching a junction with a stop sign, among others. During these intervals, checks (e.g., did the SUT stop before a stop sign?) are performed, and relevant metrics are collected.

sut_vehicle.junction_checkers

The sut_vehicle.junction_checkers is the top-level global modifier that instantiates junction-related modifiers.

OSC2 code: sut_vehicle.junction_checkers

    global modifier sut_vehicle.junction_checkers:
        watcher traverse_junction is traverse_junction(vehicle: actor)
        checker checker_approach_junction is approach_junction(traverse_junction)

Constraining its enabled field to false will disable the entire runtime functionality ('on @some-event' blocks) underneath, including instantiated modifiers such as traverse_junction and approach_junction.

OSC2 code: sut_vehicle.junction_checkers

    extend sut_vehicle:
        keep(junction_checkers.enabled == false)

traverse_junction

The traverse_junction is a watcher modifier that emits intervals when a vehicle traverses a junction.

Checker attribute	Description
vehicle	The vehicle to monitor.
distance_in_range	Minimum distance at which the junction is considered in range, measured from the center of the vehicle. The default value is 50m.

An interval will be emitted even when the vehicle is created inside a junction.

Example

The example below depicts configuring the distance_in_range of the sut.car instance to 70m.

OSC2 code: traverse_junction

extend top.main:
    keep(sut.car.junction_checkers.traverse_junction.distance_in_range == 70m)

approach_junction

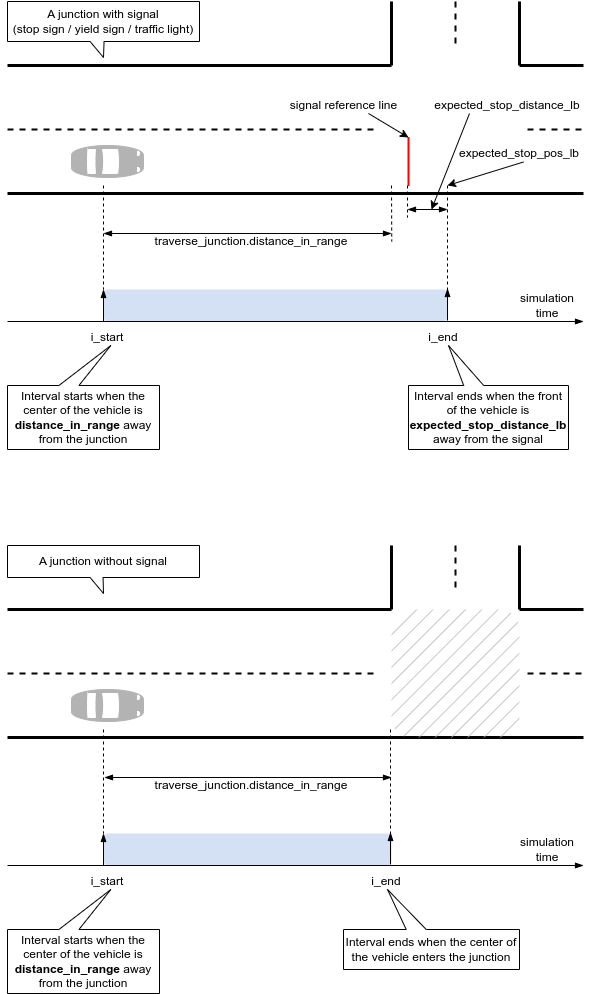

The approach_junction watcher modifier emits intervals that start when a vehicle is within a configurable distance from entering a junction and end when

• The center of the vehicle enters the junction, if no signals are present.
• The front of the vehicle passes by a stop sign, yield sign, or traffic light, if any of these signals are present.

In the diagram above:

• The "signal reference line" corresponds to the relevant signal, whether it is a stop sign, yield sign, or traffic light.
• expected_stop_pos_lb indicates the position relative to the "signal reference line" where the checks are performed. This is configurable via expected_stop_distance_lb (refer to the next table).

Checker attribute	Description
Parent object	approach_junction
Issue category	sut or other
Issue Kind	stop_at_sign, stop_at_flashing_red, stop_at_turn_on_red, stop_at_tl_not_working, run_yellow_light, run_red_light, about_to_run_red_light, slow_down_at_flashing_yellow, slow_down_at_yield
Default severity	error_continue
Trigger condition	See the description below.
Configuration Parameter	Handle to the traverse_junction watcher. approach_junction will monitor and check the behavior of the vehicle from traverse_junction.
Configuration parameter	expected_stop_distance_ub (default 3m) - Upper boundary of expected road distance to stop at a signal (measured from the front of the vehicle). It is relevant for a stop sign, flashing red traffic light, non-functional traffic light, and passing by a red traffic light and the turn-on-red rule applies.
Configuration parameter	expected_stop_distance_lb (default -0.3m) - The lower boundary of expected road distance to stop at a signal (measured from the front of the vehicle). A positive value means the front of the vehicle must stop before the signal. A negative value means the front of the vehicle may stop after passing by the signal. It is relevant for all checks.
Configuration parameter	expected_stop_min_duration (default 0.5s) - Minimum stopping duration at a signal. It is relevant for a stop sign, flashing red traffic light, non-functional traffic light, and passing by a red traffic light and the turn-on-red rule applies.
Configuration parameter	reaction_time (default 0.1s) - The delay after which the vehicle is expected to react to a traffic light changing from green to yellow.
Configuration parameter	deceleration_to_stop_at_yellow_start (default 2mpsps) - The minimum deceleration to react to a traffic light changing from green to yellow. It is used to determine whether a vehicle has enough distance to stop (completely).
Configuration parameter	deceleration_to_stop_at_red_end (default 4mpsps) - The deceleration threshold is used to check the vehicle has enough distance to stop (completely) when the traffic light changes from red to green.
Configuration parameter	slow_down_rate (default 50) - The percentage from the maximum allowed legal speed that a vehicle is expected not to exceed when entering a junction with a yield sign or flashing yellow traffic light.
Configuration parameter	min_distance_to_signal (default 20m) - Minimum distance to the signal at which checks will be performed. It is relevant in two situations: (1) The spawning position of the vehicle. (2) A traffic light changing its mode of operation (e.g., turning on/off).
Configuration parameter	min_time_gap_to_signal (default 3s) - Minimum time gap to the signal at which checks will be performed. It is relevant in two situations: (1) the spawning position of the vehicle. (2) A traffic light changing its mode of operation (e.g., turning on/off).

The approach_junction watcher holds the handle to the traverse_junction watcher modifier to determine when to start the intervals. It must be instantiated as a checker and has an approach_junction_data (inheriting any_watcher_data) associated with it.

The watcher modifier will perform checks (whether the vehicle stops, remains stopped, or slows down when it should) if either a stop sign, a yield sign, or a traffic light is present at the junction entry. It does not deal with the right-of-way.

The watcher modifier supports the following modes of operation of a traffic light:

• flashing red
• flashing yellow
• not working (either off or malfunctioning)
• regular red/yellow/green functionality
• Transition between any modes mentioned above, for example, changing from regular red/yellow/green to off, changing from regular red/yellow/green to flashing yellow, and changing from off to flashing red, and other similar changes.

The checks will not be performed if:

• The vehicle is created in the simulation too close to the signal (either the distance is less than min_distance_to_signal or the time gap is less than min_time_gap_to_signal).
• A traffic light changes its mode of operation when the vehicle is too close to it (either the distance is less than min_distance_to_signal or the time gap is less than min_time_gap_to_signal).

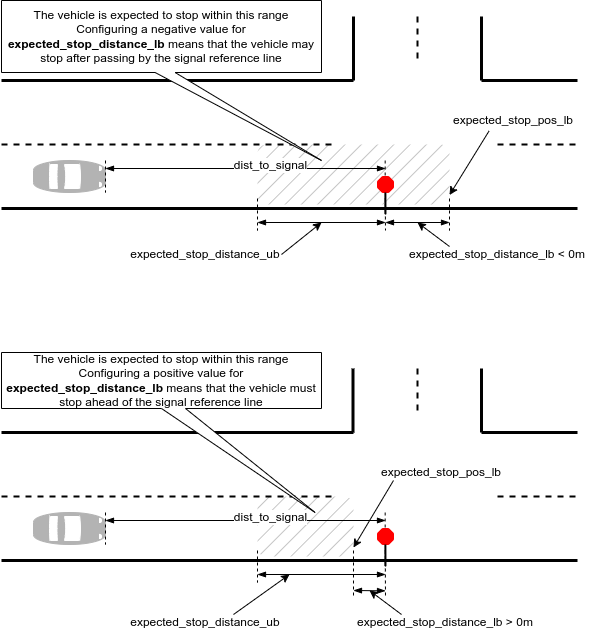

Standing still at a signal

When the vehicle approaches one of the following:

• A stop sign
• A flashing red traffic light
• A non-functional traffic light
• A regular red/yellow/green traffic light, where the vehicle intends to turn right, and the light is red.

...and the road distance from the front of the vehicle to the reference stop line (denoted as dist_to_signal in the following figure) is less than expected_stop_distance_lb (i.e., the front of the vehicle passes the expected_stop_pos_lb), the modifier will check whether the front of the vehicle stops for at least expected_stop_min_duration within the range [expected_stop_distance_lb..expected_stop_distance_ub].

Here, "the vehicle has stopped" means the vehicle.is_standing_still() method returns true for consecutive simulation steps equal to expected_stop_min_duration.

If the check fails, the checker will raise an issue with the kind stop_at_sign, stop_at_flashing_red, stop_at_turn_on_red, or stop_at_tl_not_working:

SUT error (stop_at_flashing_red): <sut_vehicle@3377 (top.sut.car) red uid:10> - SUT - ftx_driver was in control: Vehicle did not stop for 0.50second within [-0.30meter..3meter] from the flashing red traffic light.

Stopping at a yellow or red traffic light

As a matter of principle, when approaching a regular red/yellow/green traffic light and the light changes from green to yellow, the checker assumes that the vehicle will start decelerating constantly by some comfortable threshold. When the vehicle passes by the traffic light and the light is either yellow or red, the checker will raise an issue provided that the vehicle could have stopped:

The procedure is as follows:

• The reaction_time after the light changes from green to yellow:
  • Measure the distance from the front of the vehicle to the traffic light - stop_start_dist_to_signal.
  • Sample the speed of the vehicle - stop_start_speed.
  • Compute the distance to full stop assuming a constant deceleration of deceleration_to_stop_at_yellow_start.

        stop_start_dist_to_full_stop = (stop_start_speed * stop_start_speed) /
                                     (2 * deceleration_to_stop_at_yellow_start)


• When the front of the vehicle passes by the expected_stop_pos_lb and the light is either yellow or red, check whether the vehicle could have stopped:

      stop_start_dist_to_full_stop < stop_start_dist_to_signal


  if yes, raise either run_yellow_light or run_red_light issue:

  SUT error (run_red_light): <sut_vehicle@4911 (top.sut.car) red uid:17> - SUT - ftx_driver was in control: Vehicle is running a red light although it could have stopped - the light changed from green 9second ago. 0.10second (reaction time) later, the vehicle was 49.40meter away from the traffic light (accounting also for expected_stop_distance_lb of -0.30meter), driving at 6.96mps (S). Assuming a constant deceleration of 2mpsps (D), it would have stopped in 12.11meter ( S^2 / (2 * D) )

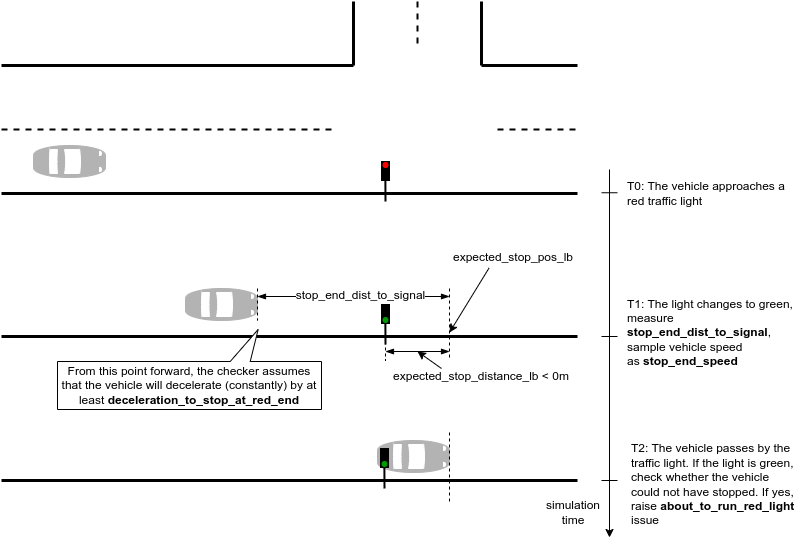

Passing on the green by chance

There are situations where passing by a green traffic light may not be ideal. For instance, consider a scenario where the vehicle passes a green light that turned from red to green only 0.1 seconds ago (a short time ago) while traveling at a speed of 50 kph. The vehicle was on the verge of running a red light. In such cases, the checker will raise an issue if the vehicle cannot be stopped:

The procedure is as follows:

• When the light changes from red to green:
  • Measure the distance from the front of the vehicle to the traffic light - stop_end_dist_to_signal.
  • Sample the speed of the vehicle - stop_end_speed.
  • Compute the distance to full stop assuming a constant deceleration of deceleration_to_stop_at_red_end.

        stop_end_dist_to_full_stop = (stop_end_speed * stop_end_speed) /
                                   (2 * deceleration_to_stop_at_red_end)


• When the front of the vehicle passes by the expected_stop_pos_lb and the light is green, check whether the vehicle could not have stopped:

      stop_end_dist_to_full_stop > stop_end_dist_to_signal


  if yes, raise about_to_run_red_light issue:

  SUT error (about_to_run_red_light): <sut_vehicle@1744 (top.sut.car) red uid:10> - SUT - ftx_driver was in control: Vehicle was about to run a red light despite the fact that the light is green - the light changed to green 0.92second ago. The vehicle was 7.29meter away from the traffic light (accounting also for expected_stop_distance_lb of -0.30meter), driving at 7.35mps (S). Assuming a constant deceleration of 2mpsps (D), it would have stopped in 13.50meter ( S^2 / (2 * D) )


Slowing down at a signal

When the vehicle approaches a yield sign or a flashing yellow traffic light and the front of the vehicle passes by the expected_stop_pos_lb, if the speed of the vehicle is greater than maximum legal speed multipled by slow_down_rate, then the checker will raise an issue with the kind slow_down_at_yield or slow_down_at_flashing_yellow:

SUT error (slow_down_at_yield): <sut_vehicle@435 (top.sut.car) red uid:14> - SUT - ftx_driver was in control: Vehicle is passing by a yield sign at 9.17mps which is bigger than 50 percent of road's legal speed 17.88mps

Examples of configuration

Configure the check to expect the vehicle to stop at least 1m ahead of the signal.

OSC code: Configure the check to expect the vehicle to stop at least 1m ahead of the signal

extend top.main:
    keep(sut.car.junction_checkers.checker_approach_junction.expected_stop_distance_lb == 1m)

For more information, see Complete example.

Freeze the modifier at runtime:

OSC code: Freeze the modifier at runtime

extend sut_vehicle.junction_checkers:
    on @start:
        override(checker_approach_junction, run_mode: freeze)

For more information, see Complete example.

Change parameters of global checkers

For example, you can change the default value of vehicle.physical.max_speed for all vehicles by adding the following in your configuration file:

OSC2 code: change max speed setting for all vehicles

extend car.physical:
    keep(max_speed ==250kph)

If you want this value to apply only to sut.car:

OSC2 code: change max speed setting for SUT

extend sut:
    keep(car.physical.max_speed == 250kph)

Change severity of global checkers

To activate/deactivate or change the severity of global checkers, change the severity of the related issue. For example, from error to warning or vice versa.

Note

You can modify all the global checkers in a similar way to the below examples. Also, see Other ways to resolve an issue for further details on how to manage checker behavior.

To change the severity of a global checker you can call issues.curr.modify(), for example:

OSC2 code: change checker severity

on @top.new_issue:
    call issues.curr.modify(speed_physical, warning,
        "Moving physical speed check to warning")

If you want to change the severity only for the SUT, you can write in your configuration file:

OSC2 code: change checker severity for SUT

on @top.new_issue if issues.curr.category == sut:
    call issues.curr.modify(speed_physical, warning,
        "Moving physical speed check to warning")

Vehicle physical: speed

In contrast to speed_policy, which describes the expected behavior of the vehicle, speed_physical checks that the vehicle's speed does not exceed or fall below the physical capability of the vehicle.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	speed_physical
Default severity	For both the SUT and NPCs: error.
Trigger condition	The minimum speed error is triggered if the vehicle's speed is below physical.min_speed. The maximum speed error is triggered if the speed exceeds physical.max_speed.
Configuration parameter	physical.max_speed (default: 200kph) and physical.min_speed (default: 0kph). The physical.min_speed parameter is set to 0 because Foretify does not currently support driving in reverse,

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic physical checker.

Formula for speed_physical

Pseudocode: formula for speed_physical

# speed exceeds physical.max_speed
state.speed > physical.max_speed * (100 + checks_tolerance_percent)/100

# speed is below physical.min_speed
state.speed < physical.min_speed * (100 + checks_tolerance_percent)/100

See also

• vehicle.state
• vehicle.physical

speed_physical messages

Foretify output: Max speed_physical too high message

[<time>] Max. physical speed limit of <max_speed> was exceeded.
<object_id> - <SUT/object type> - <driver_type>
speed : 210kph (configurable as physical.max_speed)

Foretify output: Min speed_physical too low message

[<time>] Min. physical speed limit of <min_speed> was missed.
<object_id> - <SUT/object type> - <driver_type>
speed : -10kph (configurable as physical.min_speed)

Resolution options

• Constrain physical.max_speed or physical.min_speed.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle physical: acceleration

In contrast to acceleration_policy, which describes the expected behavior of the vehicle, acceleration_physical checks that the vehicle's acceleration does not exceed or fall below the physical capability of the vehicle. The minimum acceleration is a negative value that represents the braking capability of the vehicle.

The maximum and minimum acceleration limits differ depending on many factors, such as the current speed, the uphill or downhill slope of the road, the current gear and so on. For this reason, the default severity of this checker is warning both for the SUT and NPCs.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	acceleration_physical
Default severity	For both the SUT and NPCs: warning.
Trigger condition	The minimum acceleration error is triggered if the vehicle brakes at less than physical.min_acceleration. The maximum acceleration error is triggered if the acceleration exceeds physical.max_acceleration.
Configuration parameter	physical.min_acceleration (default: -30mpsps) and physical.max_acceleration (default: 10mpsps)

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic physical checker.

Formula for acceleration_physical

Pseudocode: formula for acceleration_physical

## acceleration exceeds physical.max_acceleration
state.acceleration > physical.max_acceleration * (100 + checks_tolerance_percent)/100

## acceleration is below physical.min_acceleration
state.acceleration < physical.min_acceleration * (100 + checks_tolerance_percent)/100

See also

• vehicle.state
• vehicle.physical

acceleration_physical messages

Foretify output: Max acceleration_physical too high message

[<time>] Max. physical acceleration limit of 10mpsps was exceeded.
<object_id> - <SUT/object type> - <driver_type>
speed : 12mpsps (configurable as physical.max_acceleration)

Foretify output: Min acceleration_physical too low message

[<time>] Min. physical acceleration limit of -30mpsps was missed.
<object_id> - <SUT/object type> - <driver_type>
speed : -32mpsps (configurable as physical.min_acceleration)

Resolution options

• Constrain physical.max_acceleration or physical.min_acceleration.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle physical: turning radius

turn_physical determines whether the vehicle's angular and lateral movements are feasible, checking that these two formulas hold:

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	turn_physical
Default severity	For both the SUT and NPCs: error.
Trigger condition	Either the lateral acceleration of the vehicle or its angular speed is too high to make the turn.
Configuration parameter	physical.minimal_turning_radius (default: 5m).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic physical checker.

Formula for improbable move: turn_physical

Pseudocode: formula for turn_physical

# The vehicle slides sideways
(100 - checks_tolerance_percent)/100) * abs(state.road_acceleration.lat) > pow(max_lon_speed,2)/physical.minimal_turning_radius

# The vehicle slides in a circle
(100 - checks_tolerance_percent)/100 * abs(angular_speed_deg) > abs(v_div_r_deg) + 1*degree_per_second)

• max_lon_speed = max(state.local_speed.lon, prev_state.local_speed.lon)
• angular_speed = state.global_angular_speed.yaw, in nano_degree_per_millisecond unit
• angular_speed_deg (real) = angular_speed/degree_per_second
• v_lon_mps (real) = max_lon_speed/meter_per_second
• r_min_m (real) = physical.minimal_turning_radius/meter
• v_div_r_deg (real) = v_lon_mps/r_min_m*(180/3.14) // natural v/r unit in radian_per_second

See also

• vehicle.state
• vehicle.physical

turn_physical message

Foretify output: Improbable move (lateral acceleration) message

[<time>] Improbable move by <object_id> - <SUT/object type> - <driver_type>
expecting |a_lat| <=  |v_lon|^2/R_min:
|a_lat| = <actual-lat-acceleration>mpsps
|v_lon|^2/R_min = <feasible-lat-acceleration>mpsps

Foretify output: Improbable move (angular speed) message

[<time>] Improbable move by <object_id> - <SUT/object type> - <driver_type>
expecting |angular_speed| <= |v_lon|/R_min:
|v_lon| = <actual-lon-velocity>mps
|angular_speed_deg| = <actual-angular-speed>degree_per_second
|v_lon|/R_min = <feasible-angular-speed>degree_per_second"

Resolution options

• Configure the vehicle's R_min by constraining physical.minimal_turning_radius.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: speed

speed_policy checks that the vehicle did not exceed the declared value vehicle.policy.max_speed or fall below vehicle.policy.min_speed (for driving in reverse).

In contrast to speed_physical, which defines the physical limitations of the vehicle, speed_policy describes the expected behavior of the vehicle. Defining policy attributes improves Foretify's ability to plan appropriate scenarios. If many of your runs fail with an incomplete_scenario error, it might be that the policy fields are set incorrectly, making Foretify plan scenarios that cannot be met.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	speed_policy
Default severity	For the SUT: warning. For NPCs: ignore.
Trigger condition	The minimum speed policy check is triggered if the vehicle's speed is below policy.min_speed. The maximum speed policy check is triggered if the speed exceeds policy.max_speed.
Configuration parameter	policy.max_speed (default: 150kph) and policy.min_speed (default: 0kph). The policy.min_speed parameter is set to 0 because Foretify does not currently support driving in reverse.

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic spec checker.

Formula for speed policy

Pseudocode: formula for speed_policy

# speed exceeds policy.max_speed
state.speed > policy.max_speed * (100 + checks_tolerance_percent)/100

# speed is below policy.min_speed
state.speed < policy.min_speed * (100 + checks_tolerance_percent)/100 * 200

See also

• vehicle.state
• vehicle.policy

speed_policy messages

Foretify output: Max policy speed limit too high message

[<time>] Max. policy speed limit of 150kph was exceeded.
<object_id> - <SUT/object type> - <driver_type>
speed : 165kph (configurable as policy.max_speed)

Foretify output: Min policy speed limit too low message

[<time>] Min. policy speed limit of 0kph was missed.
<object_id> - <SUT/object type> - <driver_type>
speed : -10kph (configurable as policy.min_speed)

Resolution options

• Constrain policy.max_speed or policy.min_speed.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: acceleration

acceleration_policy checks that the vehicle did not exceed the declared value of vehicle.policy.max_acceleration or fall below vehicle.policy.min_acceleration (for braking).

In contrast to acceleration_physical, which defines the physical limitations of the vehicle, acceleration_policy describes the expected behavior of the vehicle. Defining policy attributes improves Foretify's ability to plan appropriate scenarios. If many of your runs fail with an incomplete_scenario error, it might be that the policy fields are set incorrectly, making Foretify plan scenarios that cannot be executed.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	acceleration_policy
Default severity	For both the SUT: warning. For NPCs: ignore.
Trigger condition	The minimum acceleration error is triggered if the vehicle brakes at below policy.min_acceleration. The maximum acceleration error is triggered if the acceleration exceeds policy.max_acceleration.
Configuration parameter	policy.min_acceleration (default: -4mpsps) and policy.max_acceleration (default: 2mpsps)

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic spec checker.

Formula for acceleration_policy

Pseudocode: formula for acceleration_policy

## acceleration exceeds policy.max_acceleration
state.acceleration > policy.max_acceleration

## acceleration is below policy.min_acceleration
state.acceleration < policy.min_acceleration

See also

• vehicle.state
• vehicle.policy

acceleration_policy messages

Foretify output: Max policy acceleration limit to high message

[<time>] Max. policy acceleration limit of 2mpsps was exceeded.
<object_id> - <SUT/object type> - <driver_type>
speed : 4mpsps (configurable as policy.max_acceleration)

Foretify output: Min policy acceleration limit to low message

[<time>] Min. policy acceleration limit of -4mpsps was missed.
<object_id> - <SUT/object type> - <driver_type>
speed : -5mpsps (configurable as physical.min_acceleration)

Resolution options

• Constrain policy.max_acceleration or policy.min_acceleration.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: legal speed limit

speed_limit checks that the vehicle does not exceed the legal speed limit indicated on the map.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	speed_limit
Default severity	For the SUT: error. For NPCs: info.
Trigger condition	The current speed is exceeds the speed limit indicated on the map.
Configuration parameter	policy.may_exceed_legal_speed (default: false).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic spec checker or [Speed Limit watcher][speed-limit].

Formula for legal speed_limit

Pseudocode: formula for legal speed_limit

!policy.may_exceed_legal_speed and get_legal_speed * (100 + checks_tolerance_percent)/100 < state.speed

See also

• vehicle.state
• vehicle.policy

legal speed_limit messages

Foretify output: speed_limit message

[<time>] Speed limit of <legal-speed-limit> broken
<object_id> - <SUT/object type> - <driver_type>
driving at <current-speed>
(behavior configurable as car.policy.may_exceed_legal_speed==true)

Resolution options

• Constrain policy.may_exceed_legal_speed to true.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: no teleport

If a vehicle's momentary speed exceeds the speed set in vehicle.policy.max_speed by a factor of two or more, a perceived_teleport error is raised.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	perceived_teleport
Default severity	For both the SUT and NPCs: error.
Trigger condition	The distance traveled in a single time step implies a speed more than twice policy.max_speed.
Configuration parameter	policy.max_speed (default: 150kph)

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Teleportation.

Formula for perceived_teleport

Pseudocode: formula for perceived_teleport

step_speed.abs > vehicle.policy.max_speed * 2

• dt = top.step_time
• dist = the difference between current global position and the previous global position
• step_speed = dist / dt

See also

• vehicle.state
• vehicle.policy

perceived_teleport messages

Foretify output: perceived_teleport message

<vehicle-id>had a sudden jump of <length> meters
(momentary speed of <speed> kph significantly exceeds
policy max of vehicle.policy.max_speed <speed> kph)

Resolution options

• Report this error to Foretellix.

Vehicle policy: jerk

jerk_policy checks that the vehicle does not experience a sudden and dramatic decrease or increase in acceleration.

Info

This check is currently activated for dynamic drive only.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	jerk_policy
Default severity	For the SUT: error. For NPCs: error.
Trigger condition	The vehicle.state.local_jerk.lon or vehicle.state.local_jerk.lat parameter exceeds vehicle.policy.max_jerk.
Configuration parameter	policy.max_jerk (default: 15mpspsps).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Kinematic spec checker.

Formula for jerk_policy

Pseudocode: formula for jerk_policy

state.jerk > policy.max_jerk

See also

• vehicle.state
• vehicle.policy

jerk_policy message

Foretify output: jerk_policy message

<object_id> - <SUT/object type> - <driver_type> is in control:
Extreme Jerk <([<lon-jerk>,<lat-jerk>]mpspsps,
more than the maximum [<max-jerk>]degps ,
configurable as [policy.max_jerk])>

Resolution options

• Decrease the severity level of the issue.
• Modify the constraints on the vehicle's behavior.

Vehicle policy: jitter

jitter_policy checks that there are fewer than four noticeable steers at a rate of more than one steer per two seconds. A noticeable steer is defined as 0.7m..

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	jitter_policy
Default severity	For the SUT: error. For NPCs: info.
Trigger condition	There are more than four noticeable steers at a rate of more than one steer per two seconds.
Configuration parameter	policy.may_jitter (default: false)

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Ride Comfort Event.

Formula for jitter_policy

Pseudocode: formula for jitter_policy

# steer to this side done
if abs(curr_steer_lateral_delta) < abs(steer_lateral_delta)

# it is a noticeable steer
and if steer_lateral_delta < sdlc__km and abs(steer_lateral_delta) >= noticable_steer

# more than the maximum number of steers per second
and if steers/(driving_time/second) >
    max_steers_per_second and top.time - prev_steer_time <= 1/max_steers_per_second

# more than the maximum number of steers
and if steers >= max_steers_threshold

• steer_delta = map.lateral_distance_between_positions(state.msp_pos, prev_state.msp_pos)

See also

• vehicle.state
• vehicle.policy

jitter_policy message

Foretify output: jitter_policy message

[<time>] Jitter comfort: <number-of-steers> steers from <start-count-time> to <time>
by <object_id> - <SUT/object type> - <driver_type>
does not comply with may_jitter policy (configurable as policy.may_jitter)

Resolution options

• Constrain policy.may_jitter to true.
• Decrease the severity level of the issue.
• Modify the constraints on the vehicle's behavior.

Vehicle policy: minimum highway speed

minimum_highway_speed_policy checks that when the SUT vehicle is on a highway and controlled by an AV/ADAS function, it does not drive slower than vehicle.policy.minimum_highway_speed unless there is a reason, such as a car or junction ahead.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	minimum_highway_speed_policy
Default severity	For the SUT: error. For NPCs: info.
Trigger condition	The current speed is less than policy.minimum_highway_speed, the planned speed is greater than policy.minimum_highway_speed, and there is no slowly moving object in the path or possible collision.
Configuration parameter	policy.minimum_highway_speed (default: 50kph).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use [Slow driving checker][slow-driving-indication].

Formula for minimum_highway_speed_policy

Pseudocode: formula for minimum_highway_speed_policy

if is_dut and state.vehicle_indicators.av_state == active
and if map.is_lane_position_in_highway(state.msp_pos.lane_position)
and if state.speed * (100 + checks_tolerance_percent)/100 < policy.minimum_highway_speed
    and get_planned_speed > policy.minimum_highway_speed * (100 + checks_tolerance_percent)/100
    and !is_slow_object_infront(20*kph, 20*meter)
    and (get_min_ttc_to_objects(traffic.physical_objects) > 3*second)

See also

• vehicle.state
• vehicle.policy

minimum_highway_speed_policy message

Foretify output: minimum_highway_speed_policy message

[<time>] Min. policy minimum_highway_speed limit of 50kph was missed.
<object_id> - <SUT/object type> - <driver_type>
speed : 40kph (configurable as policy.minimum_highway_speed)

Resolution options

• Constrain policy.minimum_highway_speed.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: distance to VRU on highway

minimum_highway_vru_distance_policy checks that when the SUT vehicle is controlled by an AV/ADAS function it does not drive too close to a vulnerable road user (VRU).

The TTC to a VRU is not used to calculate the distance to an object because it might be quite large when, for example, the vehicle is not driving towards a group of pedestrians but rather next to them. Instead, Foretify keeps a list of seen VRUs and calculates the distance to them, subtracting half of its own length.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	minimum_highway_vru_distance_policy
Default severity	For the SUT: error. For NPCs: info.
Trigger condition	For each of the seen VRUs, if the vehicle's speed is not less than the minimum_highway_speed, and the distance to the VRU, minus half the vehicle's width, is less than policy.minimum_highway_vru_distance, the check is triggered.
Configuration parameter	policy.minimum_highway_vru_distance (default: 3.5m, meaning one lane apart).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Static Object Too Close.

Formula for minimum_highway_vru_distance_policy

Pseudocode: formula for minimum_highway_vru_distance_policy

if is_dut and state.vehicle_indicators.av_state == active
and if it is a car or plain_object
and if it in seen_vrus
and if state.speed >= policy.minimum_highway_speed and dist - bbox.width/2 <
    policy.minimum_highway_vru_distance

• dist = map.distance_between_global_positions( state.msp_pos.global_position, it_pos) - bbox.length/2

See also

• vehicle.state
• vehicle.policy
• vehicle.state.vehicle_indicators

minimum_highway_vru_distance_policy message

Foretify output: minimum_highway_speed_policy message

[<time>] Driving too close to VRU <object-id>
(min distance configurable as policy.minimum_highway_vru_distance)

Resolution options

• Constrain policy.minimum_highway_vru_distance.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: unplanned standing time

unplanned_standing_time_policy checks that a vehicle does not stand still while moving for more than vehicle.policy.unplanned_standing_time unless there is a reason, such as a car or junction ahead.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	unplanned_standing_time_policy
Default severity	For the SUT: warning. For NPCs: info.
Trigger condition	The check is triggered if all these conditions are true: the vehicle is traveling less than 1kph the standing is not planned and the planned speed is more than 10kph there is no danger of collision there is no slow-moving object, traffic light or junction ahead
Configuration parameter	policy.unplanned_standing_time (default: 1sec).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Unplanned Standing Checker.

Formula for unplanned_standing_time_policy

Pseudocode: formula for unplanned_standing_time_policy

if (abs(state.speed) <= 1kph
    and !is_standing_planned
    and get_planned_speed > 10*kph
    and !is_in_collision_ahead_threat
    and !is_slow_object_infront( 20*kph, 20*meter)
    and !is_before_stopping_traffic_light( bbox.length )
    and (!is_towards_junction or map.is_lane_position_in_highway(state.msp_pos.lane_position)))
and if last_unplanned_standing_time < top.time and dist > 20 * meter
and if unplanned_standing_steps * top.step_time > policy.get_unplanned_standing_time

• end_pos = get_planned_abs_end_position
• dist = get_longitudinal_distance_along_route(state.msp_pos.lane_position, end_pos, planned_path)

See also

• vehicle.state
• vehicle.policy

unplanned_standing_time_policy message

Foretify output: unplanned_standing_time_policy message

[<time>] Max. policy unplanned standing time limit of 1sec was exceeded.
<object_id> - <SUT/object type> - <driver_type>
time : <current-unplanned-standing-time> (configurable as policy.unplanned_standing_time)

Resolution options

• Constrain policy.unplanned_standing_time.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: does not move

car_does_not_move checks that the SUT vehicle moves at least the distance specified by policy.min_total_distance_to_indicate_movement within the time specified by policy.max_does_not_move_time. The distance is measured by the x and y coordinates of the vehicle's global position. See Foretify's coordinate system.

This checker is activated at the start of the scenario and remains active throughout the run.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	car_does_not_move
Default severity	For the SUT: warning. For NPCs: info.
Trigger condition	The vehicle does not travel the distance specified by policy.min_total_distance_to_indicate_movement within the time specified by policy.max_does_not_move_time, or the test ends before the specified time and the SUT did not travel the minimum distance.
Configuration parameter	policy.max_does_not_move_time (default: 30sec).
Configuration parameter	policy.min_total_distance_to_indicate_movement (default: 10centimeter).
Configuration parameter	policy.allow_no_movement (default false).

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Unplanned Standing Checker.

Formula for car_does_not_move during time period

Pseudocode: formula for car_does_not_move during time period

if (vehicle.is_dut
    and !vehicle.policy.allow_no_movement
    and !vehicle.state.is_null
    and !vehicle.state.msp_pos.is_null
and if vehicle_has_significantly_moved
else if (top.time.second - vehicle.movement_evidence_time.second) >
    vehicle.policy.max_does_not_move_time.second

Formula for car_does_not_move during entire scenario

Pseudocode: formula for car_does_not_move during entire scenario

if (vehicle.is_dut
    and !vehicle.policy.allow_no_movement
    and !vehicle.state.is_null
    and !vehicle.state.msp_pos.is_null
    and !(vehicle.movement_evidence_time > top.step_time)

See also

• vehicle.state
• vehicle.policy

car_does_not_move messages

Foretify output: car_does_not_move messages

<object_id> - <SUT/object type> - <driver_type>
did not move <length> for <time>
(threshold configurable as vehicle.policy.min_total_distance_to_indicate_movement and
vehicle.policy.max_does_not_move_time)

<object_id> - <SUT/object type> - <driver_type>
did not move through the whole scenario, which lasted <time> seconds
(override this check by setting vehicle.policy.allow_no_movement=true)

Resolution options

• Disable the check by setting policy.allow_no_movement to true.
• Constrain policy.max_does_not_move_time to a different value.
• Decrease the severity level of the issue.
• Change the values for movement-related modifiers for the vehicle.

Vehicle policy: warn if too close to collision

ttc_policy is triggered if the time to collision is less than policy.too_close_TTC.

Note

This checker is disabled by default.

Checker attribute	Description
Defined in	vehicle
Category	sut or other
Kind	ttc_policy
Default severity	For the SUT: error. For NPCs: info.
Trigger condition	Minimum TTC to any other physical object in the simulation is less than policy.too_close_TTC and both policy.too_close_TTC and TTC are non-zero.
Configuration parameter	policy.too_close_TTC (default: 0ms).

Formula for ttc_policy

Pseudocode: formula for ttc_policy

if get_min_ttc_to_objects(traffic.physical_objects) < policy.too_close_TTC
    and policy.too_close_TTC != 0  and get_min_ttc_to_objects(traffic.physical_objects) != 0

See also

• vehicle.state
• vehicle.policy

ttc_policy message

Foretify output: ttc_policy message

[<time>] Min. policy too_close_TTC limit of <value> missed by
<object_id> - <SUT/object type> - <driver_type>
too_close_TTC : <value>
(min too_close_TTC configurable as policy.too_close_TTC)

Resolution options

• Constrain policy.too_close_TTC.
• Decrease the severity level of the issue.
• Modify the constraints on the vehicle's behavior.

Vehicle policy: max_road_offset checker

Checks if the center of the vehicle goes off the road by more than the distance specified by vehicle.policy.max_road_offset.

The text of the error is in the following format:

<vehicle details>: Vehicle position is too far off planned path. Position: [<lane position>], Global coordinates: [<global position>]

This check may disabled by setting policy.enable_off_planned_path_check to false.

Checker attribute	Description
Parent object	vehicle
Issue category	other
Issue Kind	off_planned_path
Default severity	error
Trigger condition	The vehicle goes off the road by more than the distance specified by (lane_width/2 + policy.max_road_offset).
Configuration parameter	policy.enable_off_planned_path_check (default: true).
Configuration parameter	policy.max_road_offset (default: 20m).

Vehicle policy: off_lane

off_lane checks that the vehicle does not drive in a lane not intended for its usage, such as a cycling lane. Deviations of up to 25% of the vehicle's width are allowed when a vehicle is dynamically controlled by Foretify or such control has ended without enough time for the AV/ADAS function to react.

This check is not run if the vehicle is in a junction.

Checker attribute	Description
Parent object	vehicle
Issue category	sut or other
Issue kind	off_lane
Default severity	For the SUT: error. For NPCs: warn.
Trigger condition	The vehicle enters a non-driving lane.
Configuration parameter	None.

Note

This checker is deprecated and will be removed from release 26.06. Instead, use Lane Departure.

Formula for Not in car lane

Pseudocode: formula for Not in car lane

if not state.msp_pos.lane_position.lane.is_car_lane
    and current_move != NULL
    and current_move.move_path.start_abs_wp.msp_lane_pos.lane.is_car_lane
    and current_move.move_path.end_abs_wp.msp_lane_pos.lane.is_car_lane

Formula for Off road on left

Pseudocode: formula for Off road on left

if front_left_pos_num > current_road_max_lane_num + edge_tolerance

• front_left_pos = state.bbox_corners[0]
• front_left_pos_num = map.lateral_lane_position_from_msp_lane_position(front_left_pos.lane_position)
• current_road_max_lane = state.msp_pos.road_position.road.lanes.last(it.lane_uses.has(it == driving))
• current_road_max_lane_num = current_road_max_lane.index_in_road.as_a(real)
• edge_tolerance = 0.25*bbox.width

Formula for Off road on right

Pseudocode: formula for Off road on right

if front_right_pos_num < current_road_min_lane_num - edge_tolerance

• front_right_pos = state.bbox_corners[0]
• front_right_pos_num = map.lateral_lane_position_from_msp_lane_position(front_right_pos.lane_position)
• current_road_min_lane = state.msp_pos.road_position.road.lanes.first(it.lane_uses.has(it==driving))
• current_road_min_lane_num = current_road_min_lane.index_in_road.as_a(real) - 1
• edge_tolerance = 0.25*bbox.width

See also

• vehicle.state
• vehicle.policy

off_lane messages

Foretify output: off_lane message

[<time>] On lane not intended for this type of vehicle - (usage: <lane_uses_str>)
[<time>] Off road on left side by <dist> in centimeters
[<time>] Off road on right side by <dist> in centimeters

Resolution options

• Decrease the severity level of the issue.
• Modify the constraints on the vehicle's behavior.
