Map-related constructs

Road-relative attributes

The road_speed and road_acceleration structs describe the speed, and acceleration of an actor relative to the start of the current frame of reference, such as an OpenDrive segment or a road.

road_speed

Field name Type Description
lon speed The speed relative to the frame of reference in a direction parallel to the road center line in meters/second.
lat speed The speed relative to the frame of reference in a direction perpendicular to the road center line in meters/second.
lat_lane float The speed relative to the frame of reference in a direction perpendicular to the road center line in lanes/second.
ang angular_speed The angular speed relative to the frame of reference in radians/second.

road_acceleration

Field name Type Description
lon acceleration The acceleration relative to the frame of reference in a direction parallel to the road center line in meters/second^2.
lat acceleration The acceleration relative to the frame of reference in a direction perpendicular to the road center line in meters/second^2.
lat_lane float The acceleration relative to the frame of reference in a direction perpendicular to the road center line in lanes/second^2.
ang angular_acceleration The angular acceleration relative to the frame of reference in radians/second^2.
Signature Description
map.center_side() -> av_side Returns the side nearest the road center (left for right-hand traffic, right for left-hand traffic)
map.center_direction() -> direction Returns the direction towards the road center (left for right-hand traffic, right for left-hand traffic)
map.curb_side() -> av_side Returns the side towards the road shoulder (curb) (left for right-hand traffic, right for left-hand traffic)
map.curb_direction() -> direction Returns the direction towards the road shoulder (curb) (left for right-hand traffic, right for left-hand traffic)
map.traffic_side() -> av_side Returns right for right-hand traffic (default) or left for left-hand traffic

vehicle.along()

Purpose

Specify on which road element a movement scenario such as vehicle.drive() should occur.

Category

Modifier

Syntax

along([element:] <road-element>
    [, at: <event>]
    [, start_offset: <length>]
    [, end_offset: <length>]
    [, exactly: <bool>]
    [, tolerance: <length>])

Parameters

[element:] <road-element>
(Required) Is an instance of a road_element type or its subtype, specifying the road element on the map where the drive occurs. <road-element> is a positional parameter. Using the element label is optional.
at: <event>
(Optional) A parameter of type event. Here, the values can be start, end, or all. The default is all, meaning that the specified road element is used throughout the current period.
start_offset: <length>
(Optional) A parameter of type length that specifies a distance from the start of the road element. The default is -1m which is interpreted as no offset. The start_offset must be positive and cannot exceed the length of the road element. Note that the start_offset, end_offset, and exactly parameters are exclusive.
end_offset: <length>
(Optional) A parameter of type length that specifies a distance to the end of the road element. The default is -1m which is interpreted as no offset. The end_offset must be positive and cannot exceed the length of the road element. Note that the start_offset, end_offset, and exactly parameters are exclusive.
exactly: <bool>
(Optional) A parameter of type bool. When true, requires the actor to travel the road element from start to end during the movement. Valid only with at: all. Note that the start_offset, end_offset, and exactly parameters are exclusive.
<tolerance>: <length>
(Optional) A parameter of type length specifies the maximum allowed deviation from the expected offset on a road element. This parameter is active only if there is no flag obstructing the required offset. The default value is 1m.

Description

The along() modifier describes the road element where the drive() should occur. The drive() can:

  • Start and end on the specified road element if at: all is specified or if the at parameter is omitted.
  • Start on the specified road element if at: start is specified.
  • End on the specified road element if at: end is specified.
  • Travel the full length of the specified element if exactly: true and at: all are specified.

A drive() without an along() modifier attached to it occurs on a completely arbitrary road segment on the specified map, subject to constraints posed by other drive scenarios that may affect it. For example, if the previous drive() of the same actor is set to end on a junction road element, the next drive() starts from the same junction even if not specified explicitly.

For the along() modifier, in addition to defining the relevant instance of a road element, you can also require a specific offset within the given road element. Set this offset by using one of the following parameters:

  • start_offset - Configure the required offset on the road element by specifying the distance from the start of the road element.

  • end_offset - Configure the required offset on the road element by specifying the distance from the end of the road element.

  • exactly - Require the vehicle to drive from the start to the end of the road element.

Notes

  • along(r, exactly: true) is equivalent to
    • along(r, start_offset: 0, at: start)
    • along(r, end_offset: 0, at: end)
  • along(r, start_offset: 0, at: start) is equivalent to along(r, end_offset: r.length, at: start)
  • along(r, end_offset: 0, at: end) is equivalent to along(r, start_offset: r.length, at: end)

Examples

This example causes the car1.drive() to occur on an arbitrary place on the map:

OSC2 code: no along() modifier
scenario sut.drive_on_any_path:
   car1: vehicle

   do car1.drive() #no along modifier attached to the drive

See complete example.

This example requires the car1.drive() to occur on a highway at the start:

OSC2 code: constrain drive() to highway
scenario sut.drive_on_highway:
    car1: vehicle
    hj: highway

    do car1.drive() with:
        along(hj, at: start)

See complete example.

Multiple along() modifiers can be attached to the same movement. The movement must occur on a place on the map that satisfies all specified along() modifiers. This example requires the car1.drive() to occur on a road with more than two lanes that is also an entry to a highway:

OSC2 code: multiple along() modifiers
scenario sut.drive_to_junction:
    car1: vehicle
    he: highway_entry
    h: highway with: keep(it.lanes > 2)

    do car1.drive() with:
        along(he)
        along(h)

See complete example.

This example requires the car1.drive() to occur on a road element of type road starting 10 to 20 meters from the beginning of the road. If there is no road whose length is longer than or equal to 10m, this modifier causes a contradiction.

OSC2 code: road with required length (example 1)
scenario sut.drive_on_road:
    r: one_way_road

    do sut.car.drive() with:
        along(r, start_offset: [10..20]m, at: start)

See complete example.

top.get_crossing_position()

Purpose

Provides the roadside position reached when crossing a road with a given heading.

Category

Modifier of the top actor

Syntax

top.get_crossing_position(
    [in_position:] <msp_position>,
    [heading: <angle>,]
    [out_lat_offset: <length>,]
    [out_lon_offset: <length>,]
    [max_no_road_prefix: <length>,]
    [max_no_roadside_distance: <length>,]
    [max_allowed_gap: <length>,]
    out_position: <msp_position> )
[in_position:] <msp_position>
(Required) A parameter of type msp_position that specifies a position on a road or roadside (not further than max_no_road_prefix from the road). Here, using the in_position label is optional.
heading: <angle>
(Optional) A parameter of type angle that specifies a heading angle relative to the road at the given position. Negative values indicate the clockwise direction. Positive values indicate the counter-clockwise direction. The default is 90deg.
out_lat_offset: <length>
(Optional) A parameter of type length that specifies the lateral offset from the calculated roadside position. The out_lat_offset direction is relative to the direction of the output lane (sidewalk, shoulder, or other). Negative values shift to the right, and positive values shift to the left. Alternatively, if the direction of the output lane is not known, you can use out_lon_offset. The default is 0m.
out_lon_offset: <length>
(Optional) A parameter of type length that specifies the longitudinal offset from the calculated roadside position. The output position is the point at a distance out_lon_offset at the given heading from the calculated roadside position. The out_lon_offset is an alternative to using out_lat_offset. The default is 0m.
max_no_road_prefix: <length>
(Optional) A parameter of type length that limits the distance of the given in_position from the road. The default is 2m. Keep the default value in normal circumstances.
max_no_roadside_distance: <length>
(Optional) A parameter of type length that specifies the max distance on the road before the roadside is reached. The default is 50m. Keep the default value in normal circumstances.
max_allowed_gap: <length>
(Optional) A parameter of type length that specifies the max continuous gap on the road that is not considered a roadside. The default is 1m. Keep the default value in normal circumstances.
out_position: <msp_position>
(Required) A parameter of type msp_position that specifies an msp_position object representing the roadside position arrived at when advancing from the input position in the given heading. The roadside is the first position on a shoulder, sidewalk, or no-lane.

Description

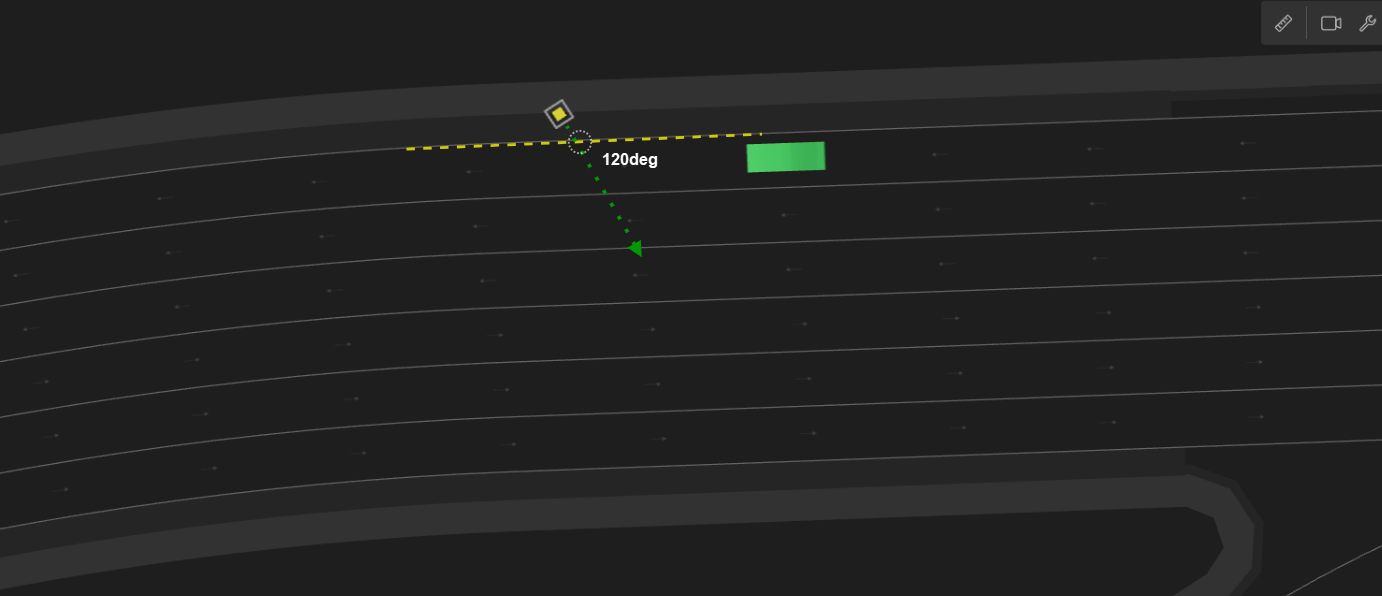

Given a position expected to be on or near a road and a heading that is relative to the road position at the given position, the top.get_crossing_position modifier returns the roadside position reached when crossing the road with the given heading.

Figure 3: Example of position on edge of sidewalk with 60deg heading

The roadside position is defined by the following:

  • If the road has a sidewalk then the roadside position is the border of the sidewalk with the driving lanes or shoulder.

  • Otherwise, if the road has a shoulder then the roadside position is the border of the shoulder with the driving lanes.

  • Otherwise, the roadside position is the border of the road.

Figure 4: End position based on existence of shoulder and/or sidewalk

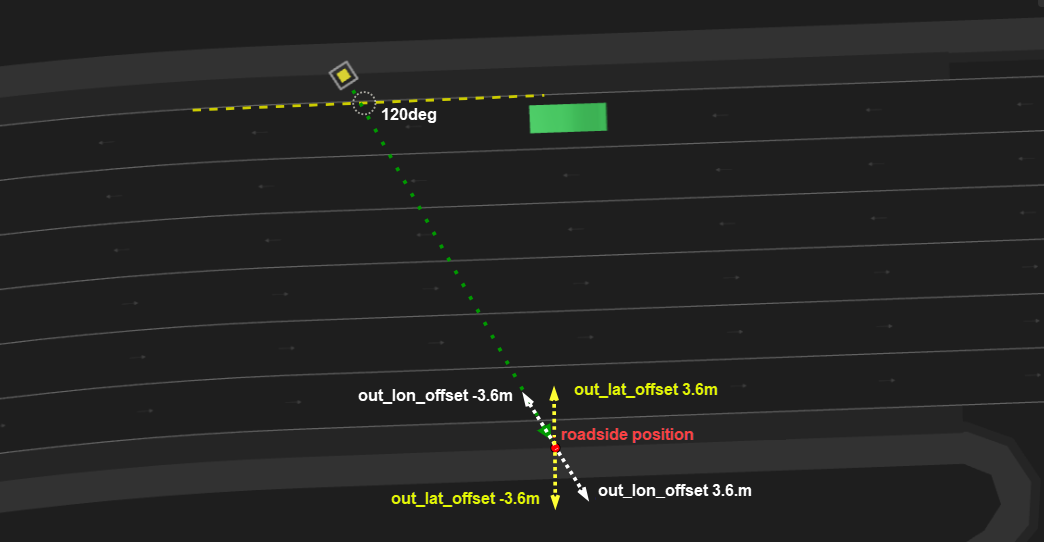

The following image illustrates the out_lat_offset and out_lon_offset parameters. out_lat_offset is an optional parameter specifying the lateral offset from the calculated roadside position. If the direction of the output lane is not known, you can use out_lon_offset instead, which specifies the longitudinal offset from the calculated roadside position.

Figure 5: out_lat_offset vs. out_lat_offset

Example

OSC2 code: get_crossing_position
extend top.main:
    p: person
    start_cross: msp_position
    end_cross: msp_position
    two_way_road: road_with_opposite
    lon_offset: length with:
        keep(lon_offset >= 10m and lon_offset <= two_way_road.length-10m)

    # Generate 'start_cross'
    top.position_along_road(position: start_cross,
                            road: two_way_road,
                            lon_offset: lon_offset,
                            rightmost_lane: true, # rightmost driving lane
                            lat_offset: -200cm,    # negative sign == right direction
                            lat_reference: right) # lat_offset is from right side of rightmost_lane

    # Generate 'end_cross'
    top.get_crossing_position(in_position: start_cross, heading: 130deg, out_lon_offset: 1m, out_position: end_cross)

    do parallel(overlap: equal, duration: [10..15]s):
        m: p.move(end_cross, start_position: start_cross)
        a: sut.car.drive() with:
            a1: along(two_way_road, start_offset: lon_offset-10m, at: end)

See complete example.

top.path_along_drive() modifier

Purpose

Place a pattern on a road along a planned drive. When placing a pattern, its anchor point is placed at a calculated position and then the rest of the pattern is placed relative to the anchor point. See crossing_path for more details.

Category

Modifier of the top actor

Syntax

path_along_drive(
    [cross_path:] <crossing-path>,
    [drive:] <any-scenario>,
    [lon_offset:] <length>
    [, lat_offset: <length>]
    [, rel_angle: <angle> ]
    [, force_on_road: <bool>]
    [, flexiline_lateral_offset_kind: <flexiline_lateral_offset_kind>])

Parameters

[cross_path:] <crossing-path>
(Required) A parameter of type crossing-path that specifies the instance of the crossing path to place. Using the cross_path label is optional.
[drive:] <any-scenario>
(Required) A parameter of type any-scenario that specifies the instance of the drive along which the pattern should be placed. Here, using the drive label is optional.
lon_offset: <length>
(Required) A parameter of type length that specifies the offset on the drive at which the anchor point will be placed.
lat_offset: <length>
(Optional) A parameter of type length that specifies the lateral offset relative to the planned position on the drive. The default is 0m.
rel_angle: <angle>
(Optional) A parameter of type angle that specifies at which angle to rotate the pattern. The rotation occurs around the anchor point. The default is 0deg.
force_on_road: <bool>
(Optional) A parameter of type bool that ensures that the whole pattern is placed on some road (to prevent placing the pattern outside any road). The default is false.
flexiline_lateral_offset_kind
(Optional) Controls the way flexibleLine is placed when a lateral offset is used. If the lateral offset is 0m, then flexibleLine follows the original road exactly. The default value (follow_by_lateral_offset) uses the following algorithm: For each point on the original road, add the lateral offset. This ensures that flexibleLine remains the same lateral offset. Another possible value is move_by_lateral_offset. Using this value, the flexibleLine is first placed following the original road and then is moved laterally (which might result in different lateral offsets at different points if the followed road is curved). The default is follow_by_lateral_offset.

Example

OSC2 code: path_along_drive
scenario vehicle.car_crossing_path:
    ref_drive: any_scenario
    other_car: vehicle

    road_pattern: road_pattern_id with: keep(it in [oncoming, traverse])
    crossing_path: crossing_path with(kind: road_pattern)

    top.path_along_drive(crossing_path, drive: ref_drive,
                     lon_offset: [50..100]m,
                     lat_offset: [-2.5..2.5]m,
                     rel_angle: [-30..30]deg,
                     force_on_road: true)

See complete example.

top.path_along_route() modifier

Purpose

Place a pattern along a road element. When placing a pattern, its anchor point is placed at a calculated position and then the rest of the pattern is placed relative to the anchor point. See crossing_path for more details.

Category

Modifier of the top actor

Syntax

path_along_route(
    [cross_path:] <crossing-path>,
    [road:] <road-element>
    [, lon_offset: <length>]
    [, lane_index: <int>]
    [, lat_offset: <length>]
    [, lat_reference: <line>]
    [, rel_angle:  <angle>]
    [, force_on_road: <bool>]
    [, flexiline_lateral_offset_kind: <flexiline_lateral_offset_kind>])

Parameters

[cross_path:] <crossing-path>
(Required) Specifies an instance of the crossing path to place. Using the cross_path label is optional.
[road:] <road-element>
(Required) Specifies an instance of the road element where the pattern should be placed. Using the road label is optional.
lon_offset: <length>
(Optional) A parameter of type length that specifies the offset from the start of the road element to the anchor point. lon_offset must be within the range [0m..road.length]. If not specified, it will be randomized.
lane_index: <int>
(Optional) A parameter of type int that specifies the lane index, where to place the anchor point. The index 1 is the rightmost lane in the road_element at the relevant lon_offset. The default is 1.
lat_offset: <length>
(Optional) A parameter of type length that specifies the lateral offset from the chosen lane (its interpretation depends on the value of lat_reference). The default is 0m.
lat_reference: <line>
(Optional) A parameter of type line that defines how lat_offset is used. Possible values include center (default) which measures the offset from the lane center, right which measures the offset from the right border of the lane, and left which measures the offset from the left border of the lane. The default is center.
rel_angle: <angle>
(Optional) A parameter of type angle that specifies the rotation relative to the original road. The default is 0deg.
force_on_road: <bool>
(Optional) A parameter of type bool that ensures that the whole pattern is placed on some road (to prevent placing the pattern outside any road). The default is false.
flexiline_lateral_offset_kind
(Optional) Controls the placement of flexibleLine when a lateral offset is used. If the lateral offset is 0m, then flexibleLine follows the original road exactly. The default value, follow_by_lateral_offset, uses the following algorithm: for each point on the original road, add the lateral offset to ensure that flexibleLine maintains a consistent lateral offset. Another possible value is move_by_lateral_offset; with this option, flexibleLine is initially placed to follow the original road and is then moved laterally, which may result in varying lateral offsets at different points if the road is curved. The default is follow_by_lateral_offset.

top.position_along_drive()

Purpose

Constrain an instance of type msp_position to have the specified input properties and to be on the path where a drive() occurs.

Category

Modifier of the top actor

Syntax

position_along_drive(
    [position:] <msp-position>,
    [drive:] <any-scenario>
    [, path_fraction: <int>]
    [, lon_offset: <length>]
    [, relative_lane_offset: <int>]
    [, lane_offset: <int>]
    [, lat_offset: <length>]
    [, lat_reference: <line>]
    [, force_on_road: <bool>])

Parameters

[position:] <msp-position>
(Required) Specifies an instance in the current scenario of type msp_position. This is the position that is constrained to be on the referenced drive(). Using the position label is optional.
[drive:] <any-scenario>
(Required) Specifies an instance in the current scenario of type any-scenario. This instance can be constrained to be the scenario containing the referenced drive. Using the drive label is optional.
path_fraction: <int>
(Optional) A parameter of type int not less than 0 or greater than 100, that specifies a longitudinal reference point by defining a fraction of the total drive route. The default is 0.
lon_offset: <length>
(Optional) A parameter of type length that specifies a longitudinal offset from the reference point on the route. The default is 0m.
relative_lane_offset: <int>
(Optional) A parameter of type int that specifies the lateral offset at the target position (after moving lon_offset or path_fraction from drive start without lane changes), where each unit equals one lane width of the reference route lane. The default is 0. This parameter cannot be used with lane_offset.
lane_offset: <int>
(Optional) A parameter of type int that specifies the number of lane changes from the start of the drive. The default is 0. This parameter cannot be used with relative_lane_offset.
lat_offset: <length>
(Optional) A parameter of type length that specifies the lateral offset from the chosen lane, which is the route’s lane after applying relative_lane_offset or lane_offset. The offset is calculated according to the lat_reference line. The default is 0m.
lat_reference: <line>
(Optional) A parameter of type line that specifies the reference line from which lat_offset is calculated. The default is center which measures lat_offset from the lane center line. Options include right to measure lat_offset from the lane's right border, or left to measure the lat_offset from the lane's left border. The default is center.
force_on_road: <bool>
(Optional) A parameter of type bool that determines whether to constrain the position within the lateral boundaries of the referenced road. When enabled, this ensures the position remains on the road surface, even if lateral offsets would otherwise place it off-road. The default is false.

Example

OSC2 code: position_along_drive()
    top.position_along_drive(start_pos, ref_drive, path_fraction: fraction,
        lat_offset: start_lat_offset, lon_offset: lon_offset)
    top.position_along_drive(end_pos, ref_drive, path_fraction: fraction,
        lat_offset: end_lat_offset, lon_offset: lon_offset)

See complete example.

top.position_along_road()

Purpose

Constrain an instance of type msp_position to have the specified input properties and to be on the referenced road.

Category

Modifier of the top actor

Syntax

position_along_road(
    [position:] <msp-position>,
    [road:] <road-element>
    [, lon_offset: <length>]
    [, lane_index: <int>]
    [, at_lane_end: <bool>]
    [, leftmost_lane: <bool>]
    [, rightmost_lane: <bool>]
    [, innermost_lane: <bool>]
    [, outermost_lane: <bool>]
    [, lat_offset: <length>]
    [, lat_reference: <line>]
    [, force_on_road: <bool>]
    [, use_road_element_lane_indexing: <bool>])

Important Note

leftmost_lane and rightmost_lane are deprecated! Use innermost_lane and outermost_lane instead.

innermost_lane

  • The lane closest to the lanes in the opposite direction.
  • In right-hand traffic this corresponds to the leftmost lane.
  • In left-hand traffic this corresponds to the rightmost lane.

outermost_lane

  • The lane closest to the road shoulder or curb.
  • In right-hand traffic this corresponds to the rightmost lane.
  • In left-hand traffic this corresponds to the leftmost lane.

Parameters

[position:] <msp-position>
(Required) Specifies an instance in the current scenario of type msp_position. This is the position that is constrained to be on the referenced road. Using the position label is optional.
[road:] <road-element>
(Required) Specifies an instance in the current scenario of type road_element. This instance can be constrained to be the referenced road. Using the road label is optional.
lon_offset: <length>
(Optional) A parameter of type length that sets a longitudinal offset from the reference point on the route. The default value is not less than 0m and not greater than road.length.
lane_index: <int>
(Optional) A parameter of type int that specifies the required lane index. The default value is 1.
at_lane_end: <bool>
(Optional) A parameter of type bool that specifies whether the lane has any outgoing connections. The default is false.
leftmost_lane: <bool> DEPRECATED
(Optional) A parameter of type bool that specifies whether the lane is a leftmost lane. The default is false. This field is deprecated and will be removed in version 26.02. Instead use innermost_lane (for right-hand traffic) or outermost_lane (for left-hand traffic).
rightmost_lane: <bool> DEPRECATED
(Optional) A parameter of type bool that specifies whether the lane is a rightmost lane. The default is false. This field is deprecated and will be removed in version 26.02. Instead use innermost_lane (for left-hand traffic) or outermost_lane (for right-hand traffic).
innermost_lane: <bool>
(Optional) A parameter of type bool that specifies whether the lane is an innermost lane, i.e., closest to the lanes in the opposite direction. In right-hand traffic this corresponds to the leftmost lane; in left-hand traffic this corresponds to the rightmost lane. The default is false.
outermost_lane: <bool>
(Optional) A parameter of type bool that specifies whether the lane is the outermost lane i.e., closest to the road shoulder or curb. In right-hand traffic this corresponds to the rightmost lane; in left-hand traffic this corresponds to the leftmost lane. The default is false.
lat_offset: <length>
(Optional) A parameter of type length that specifies the lateral offset from the chosen lane. The offset is calculated according to the specified lat_reference. The default is 0m.
lat_reference: <line>
(Optional) A parameter of type line that specifies the reference line from which lat_offset is calculated. The default is center which measures lat_offset from the lane center line. Options include right to measure lat_offset from the lane's right border, or left to measure the lat_offset from the lane's left border. The default is center.
force_on_road: <bool>
(Optional) A parameter of type bool that determines whether to constrain the position within the lateral boundaries of the referenced road. When enabled, this ensures the position remains on the road surface, even if lateral offsets would otherwise place it off-road. The default is false.
use_road_element_lane_indexing: <bool>
(Optional) A parameter of type bool, relevant only when lane_index is used, controls how the lane_index is interpreted. When set to true, lane_index is considered the index of the lane within the road element. When set to false, lane_index is considered the index of the lane within msp_road. The default value is false.

Notes

  • You can only specify one of leftmost_lane, rightmost_lane, innermost_lane, outermost_lane, lane_index, and at_lane_end.
  • Regarding use_road_element_lane_indexing: Consider a 4-lane road where the road element covers only the two leftmost lanes, and lane_index is set to 1. If use_road_element_lane_indexing is set to true, lane 3 will be used (as the road element contains lanes 3 and 4). If use_road_element_lane_indexing is set to false, lane 1 will be used.

Example

OSC2 code: position_along_road()
    top.position_along_road(position, road, lon_offset: [10..20]m)

See complete example.

top.roads_enter_junction_relation()

Purpose

Constrain two instances of type one_way_road entering the same junction to have the relation specified by the input parameters.

Category

Modifier of the top actor

Syntax

roads_enter_junction_relation(
    [in_road1:] <one-way-road>,
    [in_road2:] <one-way-road>
    [, relative_direction: <dir> |
    max_angle_diff: <angle>, min_angle_diff: <angle>]
    [, clockwise_count: <int>])
)

Parameters

[in_road1:] <one-way-road>
(Required) Specifies a road element of type one_way_road that connects to a junction. Using the in_road1 label is optional.
[in_road2:] <one-way-road>
(Required) Specifies a road element of type one_way_road that connects to a junction. Using the in_road2 label is optional.
relative_direction: <dir>
(Optional) Constrains in_road2 to be at the specified direction relative to in_road1. One of undefined, slight_right, mid_right, sharp_right, any_right, opposite, sharp_left, mid_left, slight_left, any_left. For example, to constrain in_road2 to be on the right side of in_road1, use any_right or any of the more specific right values. The default is undefined. For more details see relative_direction in the Predefined enumerated types table.

max_angle_diff: <angle>
(Optional) A parameter of type angle that defines the angle relation between the two roads. The angle is the global angle of the end of the road. The default is 360degree. Use this parameter together with min_angle_diff if relative_direction does not give the required constraint granularity.
min_angle_diff: <angle>
(Optional) A parameter of type angle that defines the angle relation between the two roads. The angle is the global angle of the end of the road. The default is 0degree. Use this parameter together with max_angle_diff if relative_direction does not give the required constraint granularity.
clockwise_count: <int>
(Optional) A parameter of type int that defines the number of entry roads between in_road1 and in_road2 (if they are adjacent). The default is 0 which means it does not constrain anything (in_road1 and in_road2 must be different). If clockwise_count is specified in conjunction with min_angle_diff, max_angle_diff or relative_direction and values that specify all constraints cannot be found, a solver error is issued.

Description

Use roads_enter_junction_relation() to label the roads of a junction that you want to use as entries, constrain their relationship to the in_road of a roads_follow_junction instance, and use the along() modifier of a vehicle's drive() scenario to constrain the vehicle to enter on one of the labeled roads.

Example description

Used with a four-way junction such as one found on the OpenDrive map Town04.xodr, the Complete example shown below does the following:

  1. Creates three vehicles:

    • vehicle_left
    • vehicle_right
    • vehicle_opposite

  2. Creates an instance of roads_follow_in_junction.

    OSC2 code: create instance of roads_follow_in_junction
    path_over_junction: roads_follow_in_junction

    See roads_follow_in_junction for a description of this road element.

  3. Identifies each of three of the roads connected to the junction with an enter_ and exit_ label, for example:

    OSC2 code: create labels for one_way_road elements
    enter_from_left_road: one_way_road
exit_to_right_road: one_way_road

    The fourth road uses the in_road and out_road labels defined in path_over_junction.

  4. Uses top.roads_enter_junction_relation() to constrain each of the roads with an enter_ label relative to path_over_junction.in_road, for example:

    OSC2 code: roads_enter_junction_relation()
    top.roads_enter_junction_relation(path_over_junction.in_road,
    enter_from_left_road,
    relative_direction: mid_left,
    clockwise_count: 1)

  5. Uses top.roads_exit_junction_relation() to constrain each of the roads with an exit_ label relative to path_over_junction.out_road.

    OSC2 code: roads_exit_junction_relation()
    top.roads_exit_junction_relation(path_over_junction.out_road,
    exit_to_right_road,
    relative_direction: mid_right,
    clockwise_count: 1)

  6. Uses along() to constrain the drive() of each vehicle so that:

    • The sut.car enters on path_over_junction.in_road and exits on path_over_junction.out_road.
    • vehicle_left enters on enter_from_right_road and exits on exit_to_left_road.
    • vehicle_right enters on enter_from_left_road and exits on exit_to_right_road.
    • vehicle_opposite enters on enter_from_opposite_road and exits on exit_to_opposite_road.

    For example:

    OSC2 code: constrain vehicle path with along()
    vehicle_left.drive() with:
    along(enter_from_right_road, end_offset: [10..20]m, at: start)
    along(exit_to_left_road, start_offset: [10..30]m, at: end)

Example

OSC2 code: constrain relation between roads entering and exiting a junction
extend top.main:
    vehicle_left: vehicle
    vehicle_right: vehicle
    vehicle_opposite: vehicle

    path_over_junction: roads_follow_in_junction

    enter_from_left_road: one_way_road
    exit_to_right_road: one_way_road

    enter_from_opposite_road: one_way_road
    exit_to_opposite_road: one_way_road

    enter_from_right_road: one_way_road
    exit_to_left_road: one_way_road

    # 'enter_from_left_road' enters the junction from left of 'path_over_junction.in_road' and
    # 'enter_from_left_road' is the first junction entry counting clockwise from 'path_over_junction.in_road'
    top.roads_enter_junction_relation(path_over_junction.in_road,
        enter_from_left_road,
        relative_direction: mid_left,
        clockwise_count: 1)
    # 'enter_from_opposite_road' enters the junction from opposite direction of 'path_over_junction.in_road' and
    # 'enter_from_opposite_road' is the second junction entry counting clockwise from 'path_over_junction.in_road'
    top.roads_enter_junction_relation(path_over_junction.in_road,
        enter_from_opposite_road,
        relative_direction: opposite,
        clockwise_count: 2)
    # 'enter_from_right_road' enters the junction from right of 'path_over_junction.in_road' and
    # 'enter_from_right_road' is the third junction entry counting clockwise from 'path_over_junction.in_road'
    top.roads_enter_junction_relation(path_over_junction.in_road,
        enter_from_right_road,
        relative_direction: mid_right,
        clockwise_count: 3)
    # 'exit_to_right_road' exits the junction to right of 'path_over_junction.out_road' and
    # 'exit_to_right_road' is the first junction exit counting clockwise from 'path_over_junction.out_road'
    top.roads_exit_junction_relation(path_over_junction.out_road,
        exit_to_right_road,
        relative_direction: mid_right,
        clockwise_count: 1)
    # 'exit_to_opposite_road' exits the junction to opposite direction of 'path_over_junction.out_road' and
    # 'exit_to_opposite_road' is the second junction exit counting clockwise from 'path_over_junction.out_road'
    top.roads_exit_junction_relation(path_over_junction.out_road,
        exit_to_opposite_road,
        relative_direction: opposite,
        clockwise_count: 2)
    # 'exit_to_left_road' exits the junction to left of 'path_over_junction.out_road' and
    # 'exit_to_left_road' is the third junction exit counting clockwise from 'path_over_junction.out_road'
    top.roads_exit_junction_relation(path_over_junction.out_road,
        exit_to_left_road,
        relative_direction: mid_left,
        clockwise_count: 3)

    do serial():
        parallel(duration: [4..20]s, overlap: equal):
            sut.car.drive() with:
                along(path_over_junction.in_road, end_offset: [10..30]m, at: start)
                along(path_over_junction.out_road, start_offset: [10..30]m, at: end)
            vehicle_left.drive() with:
                along(enter_from_right_road, end_offset: [10..20]m, at: start)
                along(exit_to_left_road, start_offset: [10..30]m, at: end)
            vehicle_right.drive() with:
                along(enter_from_left_road, end_offset: [10..20]m, at: start)
                along(exit_to_right_road, start_offset: [10..30]m, at: end)
            vehicle_opposite.drive() with:
                along(enter_from_opposite_road, end_offset: [10..20]m, at: start)
                along(exit_to_opposite_road, start_offset: [10..30]m, at: end)

See complete example.

top.roads_exit_junction_relation()

Purpose

Constrain two instances of type one_way_road exiting the same junction to have the relation specified by the input parameters.

Category

Modifier of the top actor

Syntax

roads_exit_junction_relation(
    [out_road1:] <one-way-road>,
    [out_road2:] <one-way-road>
    [, relative_direction: <dir> |
    max_angle_diff: <angle>, min_angle_diff: <angle>]
    [, clockwise_count: <int>])
)

Parameters

[out_road1:] <one-way-road>
(Required) Specifies a road element of type one_way_road that connects to a junction. Using the in_road1 label is optional.
[out_road2:] <one-way-road>
(Required) Specifies a road element of type one_way_road that connects to a junction. Using the in_road2 label is optional.
relative_direction <dir>
(Optional) Constrains out_road2 to be at the specified direction relative to out_road1. One of undefined, slight_right, mid_right, sharp_right, any_right, opposite, sharp_left, mid_left, slight_left, any_left. For example, to constrain out_road2 to be on the right side of out_road1, use any_right or any of the more specific right values. The default is undefined. For more details see relative_direction in the Predefined enumerated types table.

max_angle_diff: <angle>
(Optional) A parameter of type angle that defines the angle relation between the two roads. The angle is the global angle of the end of the road. The default is 360degree. Use this parameter together with min_angle_diff if relative_direction does not give the required constraint granularity.
min_angle_diff: <angle>
(Optional) A parameter of type angle that defines the angle relation between the two roads. The angle is the global angle of the end of the road. The default is 0degree. Use this parameter together with max_angle_diff if relative_direction does not give the required constraint granularity.
clockwise_count: <int>
(Optional) A parameter of type int that defines the number of exit roads between out_road1 and out_road2 (if they are adjacent). The default is 0 which means it does not constrain anything (out_road1 and out_road2 must be different). If clockwise_count is specified in conjunction with min_angle_diff, max_angle_diff or relative_direction and values that specify all constraints cannot be found, a solver error is issued.

Description

Use roads_exit_junction_relation() to label the roads of a junction that you want to use as exits, constrain their relationship to the out_road of a roads_follow_junction instance, and use the along() modifier of a vehicle's drive() scenario to constrain the vehicle to exit on one of the labeled roads.

Example

See example for top.roads_enter_junction_relation().

Road Data coverage

To collect road element data, do the following:

  1. Activate road data collection with track_road_element().
  2. Collect data with cover, record, and so on.

Notes

  • This construct collects data for the fields that are defined for a specific road element type. For example, for the road element highway, you can collect length, legal_speed, and lanes. This construct does not collect any map-specific information.
  • In Foretify's Map view you can highlight elements of a chosen type, so you can see exactly where these elements are. In Foretify's Visualizer View you can see when the car passed through a specific road element.

track_road_element()

Purpose

Activate road data collection

Category

Special modifier

Syntax

[<label>:] <object-instance>.track_road_element(<road-element-type>,
        [, event: <event-name>]
        [, data: <data-name>]
        trigger: <trigger>)

Note

This modifier can only appear as a scenario member (not inside a do block).

Parameters

<label>
(Optional) Is used to create the name of the event and the data variable if the <event-name> and <data-name> parameters are not passed.
<object-instance>
(Required) Is an instance of a moving object, such as a vehicle or person.
<road-element-type>
(Required) Is the name of a road_element type or its subtype, specifying the road element on the map where the specified object moves. <road-element-type> is a positional parameter.
<event-name>
(Optional) Is the name of the event that is emitted when the physical object passes through a road element of the specified type. The default name is <label>_event.
<data-name>
(Optional) Is the name of variable containing the data collected when the event occurs. The default name is <label>_data.
<trigger>
(Required) Is start or all, specifying whether data collection should occur only in the single cycle when the physical object starts to pass through the road element or on every clock cycle while the object is in the road element.

Description

The purpose of this construct is to determine whether a movement was executed on an appropriate road element, and to collect data on the attributes of the road element.

This construct collects data for the fields that are defined for that road element type. For example, for the road element highway, you can collect length, legal_speed, and lanes. This construct does not collect any map-specific information.

When this modifier is declared in a scenario:

  • At the start of that scenario instance, Foretify starts tracking that road type.
  • At the end of that scenario instance, Foretify stops tracking that road type.
  • When the object passes through that road type, an event is emitted with a variable containing the road element data at that event.
  • The event is emitted either at the start of the road element or every clock cycle according to the trigger parameter.

If the simulation ends while the object is on a road element of the specified type, that element is also recorded (if possible).

You can cover the road data using cover or record. You must use the event and data names as specified in track_road_element().

Example 1

In the following example, because car1 drives on two road elements of type town_junction and the trigger is start, the expected number of coverage hits is two. However, the results depend in part on the number of elements of type town_junction on the map, the duration of the scenario as well as other constraints.

OSC2 code: track_road_element() with trigger @start
import "$FTX_PACKAGES/common/osc/utils/av_utility_scenarios.osc"
import "$FTX/env/basic/exe_platforms/model_ssp/config/model_sumo_config"

extend test_config:
    set map = "$FTX_PACKAGES/maps/Town04.xodr"

scenario sut.track_junction_start:
    elem_1: internal_road
    elem_2: internal_road

    junction_dir: sut.car.track_road_element(internal_road, trigger:start)
    cover(junction_direction, expression:junction_dir_data.direction, event: junction_dir_event)

    do s1: serial():
        d2: sut.car.drive() with:
            speed(speed: 40kph, run_mode: best_effort)
            along(elem_1)
        d3: sut.car.drive() with:
            keep_speed()
            along(elem_2)

extend top.main:

    do sut.track_junction_start()

Example 2

In the following example, because the trigger is all, a coverage hit is expected for every simulation step that car1 traverses a road_with_sign element.

OSC2 code: track_road_element() with trigger @all
import "$FTX_PACKAGES/common/osc/utils/av_utility_scenarios.osc"
import "$FTX_BASIC/exe_platforms/sumo_ssp/config/sumo_config.osc"

extend test_config:
    set map = "$FTX_PACKAGES/maps/M36_FTX_suburban_4way_stops.xodr"

scenario top.track:
    car1: vehicle
    rws: road_with_sign

    rws_all: car1.track_road_element(road_with_sign, trigger: all)
    cover(sign_type, expression: rws_all_data.sign_type, event: rws_all_event)

    do s1: serial(duration: [9..30]s):
        d1: car1.drive() with:
            speed(speed: 40kph, run_mode: best_effort)
        d2: car1.drive() with:
            keep_speed()
            along(rws)

extend top.main:
    do t1: top.track()

Coordinate systems

Foretify handles data related to the position of an object using one of three different coordinate systems, depending on the context: the Inertial System, the Road/Lane System, and the Local System. See Foretify's coordinate system for details.

Writing scenarios with map specifications

cut_in

Below is an example of the cut_in() scenario that takes place at an arbitrary place on the map. Note that no road element is specified in this example:

OSC2 code: no specified road element
scenario sut.cut_in:
    car1: vehicle # The "cut-in" car
    side: av_side # The side of which car1 cuts in, left or right

    do serial():
        change_lane: parallel(duration:[1.5..3]second, overlap:equal):
            sut.car.drive()
            car1.drive() with:
                l1: lane(side_of: sut.car, side: side, at: start)
                p1: position(time: [0.5..1]second, ahead_of: sut.car, at: start)
                l2: lane(same_as: sut.car, at: end)
                p2: position(time: [1.5..2]second, ahead_of: sut.car, at: end)

See complete example.

The following example specifies that the cut_in() scenario occur on a highway with a minimum of three driving lanes:

OSC2 code: highway with at least three lanes
scenario sut.cut_in_on_highway:
    car1: vehicle # The "cut-in" car
    side: av_side # The side of which car1 cuts in, left or right
    h: highway with: keep(it.lanes >= 3)

    do serial():
        change_lane: parallel(duration:[1.5..3]second, overlap:equal):
            sut.car.drive()
            car1.drive() with:
                lane(side_of: sut.car, side: side, at: start)
                position(time: [0.5..1]second, ahead_of: sut.car, at: start)
                lane(same_as: sut.car, at: end)
                position(time: [1.5..2]second, ahead_of: sut.car, at: end)
                along(h)

See complete example.

Note that there is no along() modifier on the path of sut.car. This is because car1 and sut.car are connected by lane() and position() modifiers that implicitly require them to be on the same road element. However, adding an along() modifier on sut.car for better readability is allowed.

traverse_junction

OSC2 code: vehicle traverses junction
scenario vehicle.traverse_junction:
    car: vehicle
    path: roads_follow_in_junction # Junction to traverse

    do serial(duration: [1..10]second):
        enter: car.drive() with:
            along(path.in_road)
        inside: car.drive() with:
            along(path.internal_road)
        exit: car.drive() with:
            along(path.out_road)

See complete example.

Calculating road curvature

The following example shows how to calculate the curvature of the road at a trailer's center. This calculation can later be used for other calculations.

OSC2 code: get_road_curvature_at_trailer()
extend vehicle:
   def get_road_curvature_at_trailer() -> float is:
      var lane_pos_candidates := map.global_to_lane_coordinates_on_route(trailer_1.state.global_position.coord, planned_path)
      if not lane_pos_candidates.is_empty():
         var trailer_lane_pos := lane_pos_candidates[0]
         var curv_interval := trailer_lane_pos.lane.curvature_intervals.longitudinal_values.last(it.start_lon_offset < trailer_lane_pos.lon_offset)
         return curv_interval.curvature
      else:
         # Failed to find lane position of trailer
         return 0

See complete example.

You can use the following code to convert curvature to radius:

OSC2 code: convert curvature to radius
var road_radius = 1meter * (1 / get_road_curvature_at_trailer())

Note

In the case of a straight road, get_road_curvature_at_trailer() returns 0. Be careful when calculating the radius, since it will fail for a straight road (division by 0).

Known limitations

If the road is straight, the returned value is 0. In addition, the returned value can be 0 if the trailer goes off the road.

map.global_to_lane_coordinates_on_route

Purpose

Convert provided global coordinates to lane coordinates.

Category

method

Example

OSC2 code: convert global coordinates to lane coordinates
var lane_pos_candidates := map.global_to_lane_coordinates_on_route(trailer_1.state.global_position.coord, planned_path)

See Example of calculating road radius for a trailer's position for a complete code example that uses map.global_to_lane_coordinates_on_route.

Description

The map.global_to_lane_coordinates_on_route method tries to convert provided global coordinates to lane coordinates with search limited to a provided list of roads. Typically this method is used with vehicle.planned_path. The method returns a list of potential coordinates. It returns a list because it's possible that several roads pass through the same global position.

The search is completed as follows:

  • Find any position on one of the reference lines of all candidate lanes, such that there is a perpendicular to the reference line from that point that goes through the global coordinates.

  • If the distance of the perpendicular line is greater than the lane width, consider this candidate only if no other candidates are found.

  • If the distance of the perpendecular line is less then the lane width (meaning the global position is within the lane boundaries), add this position to the result.

lane.curvature_intervals

Purpose

Provides a list of curvatures along a given lane.

Category

list

Example

OSC2 code: Provide list of curvatures
var curv_interval := trailer_lane_pos.lane.curvature_intervals.longitudinal_values.last(it.start_lon_offset < trailer_lane_pos.lon_offset)

See Example of calculating road radius for a trailer's position for a complete code example that uses lane.curvature_intervals.

Description

lane.curvature_intervals is a list of curvatures along the lane ordered by longitudinal offset. The lane_longitudinal_curvature struct includes the following fields:

  • lane: The lane for which these curvatures are calculated.

  • longitudinal_values: List of curvature_interval instances (ordered by start_lon_offset) which include:

    • start_lon_offset: Starting longitudinal offset of the start of the curvature

    • curvature: The calculated curvature (average between min_curvature and max_curvature)

    • min_curvature: Minimum calculated curvature (from start_lon_offset until the next instance of curvature_interval)

    • max_curvature: Maximum calculated curvature (from start_lon_offset until the next instance of curvature_interval)

The curvature calculation builds instances of the curvature_interval that cover the longest interval possible. A new instance of curvature_interval is created only if the change in curvature is more than three times the curvature_interval (or the curvature changes direction).
