OpenDRIVE MSP specific elements

Custom routes

You can create a predefined path on a xodr map using ODR points. This is useful when a vehicle needs to follow a GPS path or a route specified by a test protocol.

To create a custom route:

  1. Specify one or more points using create_odr_point().
  2. (Optional) Join the points into a route using create_route().
  3. Constrain the drive of the vehicle with along().

Restrictions

Take note of the following restrictions.

  • These methods can be used only for generatable fields.
    • OSC2 code: Example of a restriction:

var x:= map.create_odr_point("10", -1, 2m) # not allowed
  • Additional constraints on these fields are not supported.
    • OSC2 code: Example of a restriction:

x:= map.create_odr_point("10", -1, 2m)
keep(x ....)  # not allowed

odr_point route element and create_odr_point() method

The odr_point route element represents a lane position in terms of the ODR map:

  • A road ID (restricted to integer values)
  • A lane ID
  • A longitudinal offset on the OpenDRIVE road reference line.
struct custom_route_element inherits road_element:
    custom_route_id: int

struct odr_point inherits custom_route_element:
    road_id: int
    lane_id: int
    s: length

Unlike other route elements, occurrences of odr_point (and custom_routes in general) are generated with fixed values by calling the map method create_odr_point(road_id: string, lane_id: int, s: length) -> odr_point.

The create_odr_point() method returns a single ODR point, based on the specified parameters. If the parameters do not point to a valid point on the map, an error message similar to the following is displayed:

odr_point specified by road 8715, lane -5 offset 126.987654321m was not found on loaded map

Parameters

  • road_id: <string>
    The ODR road ID, which should be a number represented as a string. This parameter is required and must remain constant.

  • lane_id: <int>
    The ODR lane ID. This parameter is required and must remain constant.

  • s: <length>
    A longitudinal offset from the ODR reference. This parameter is required and must be constant.

Example using odr_point route element and create_odr_point() method

This example starts a route on a specific ODR point.

import "$FTX/env/basic/exe_platforms/model_ssp/config/model_sumo_config.osc"

extend test_config:
    set map = "$FTX_PACKAGES/maps/M61_FTX_highway_10km_4lane.xodr"

extend top.main:
    p1 := map.create_odr_point("0", -3, 900m)  # Start on road 0:-3 with offset of 900m

    do sut.car.drive(duration: [1..3]s) with:
        along(p1, at: start)

explicit_odr_route and method create_route()

The explicit_odr_route route element represents the shortest route via an ordered list of odr_point occurrences.

The struct explicit_odr_route inherits custom_route_element.

Unlike other route elements, occurrences of explicit_odr_route (and custom_routes in general) are generated with fixed values by calling the map method create_route(points: list of odr_point) -> explicit_odr_route.

The create_route() method creates a route that passes through a specified ordered list of odr_point occurrences. Each pair of points is connected by the shortest path.

If no path can be found between any two points, an error similar to the following is displayed:

Failed to create explicit_odr_route. No route found from road 3 lane 1 offset 22.123456789m to road 3 lane -1 offset 11.0m

Parameters

  • points: <list of odr_point>-
    A list of ODR points

Example: Follow a pre-defined route based on several ODR points

This example directs a vehicle to follow a pre-defined route based on several ODR points.

import "$FTX_BASIC/exe_platforms/sumo_ssp/config/sumo_config.sdl"

extend test_config:
    set map = "$FTX_PACKAGES/maps/highway.xodr"

extend top.main:
    p1 := map.create_odr_point("3", 1, 22m)
    p2 := map.create_odr_point("23", 3, 11m)

    # r1 is a route created by connecting p1, p2 and a new custom point.
    #
    r1 := map.create_route([p1, p2, map.create_odr_point("5", -5, 126m)])

    do sut.car.drive(duration: [1..3]s) with:
        along(r1)

odr_road

The odr_road route element represents the driving lanes on one side of an OpenDrive road.

It has the following attributes:

  • odr_id:int-
    The OpenDrive road ID as integer.

  • min_lane_id: int-
    The smallest lane ID of a driving lane along the OpenDrive road.

  • max_lane_id: int -
    The largest lane ID of a driving lane along the OpenDrive road.

  • sub_id:int -
    A value indicating the road side: 1 for the left side (positive lane IDs) and -1 for the right side (negative lane IDs) relative to the OpenDrive road reference line.

  • is_in_junction: bool -
    A boolean value indicating whether the OpenDrive road is inside a junction (‘true’) or not inside a junction (‘false’).

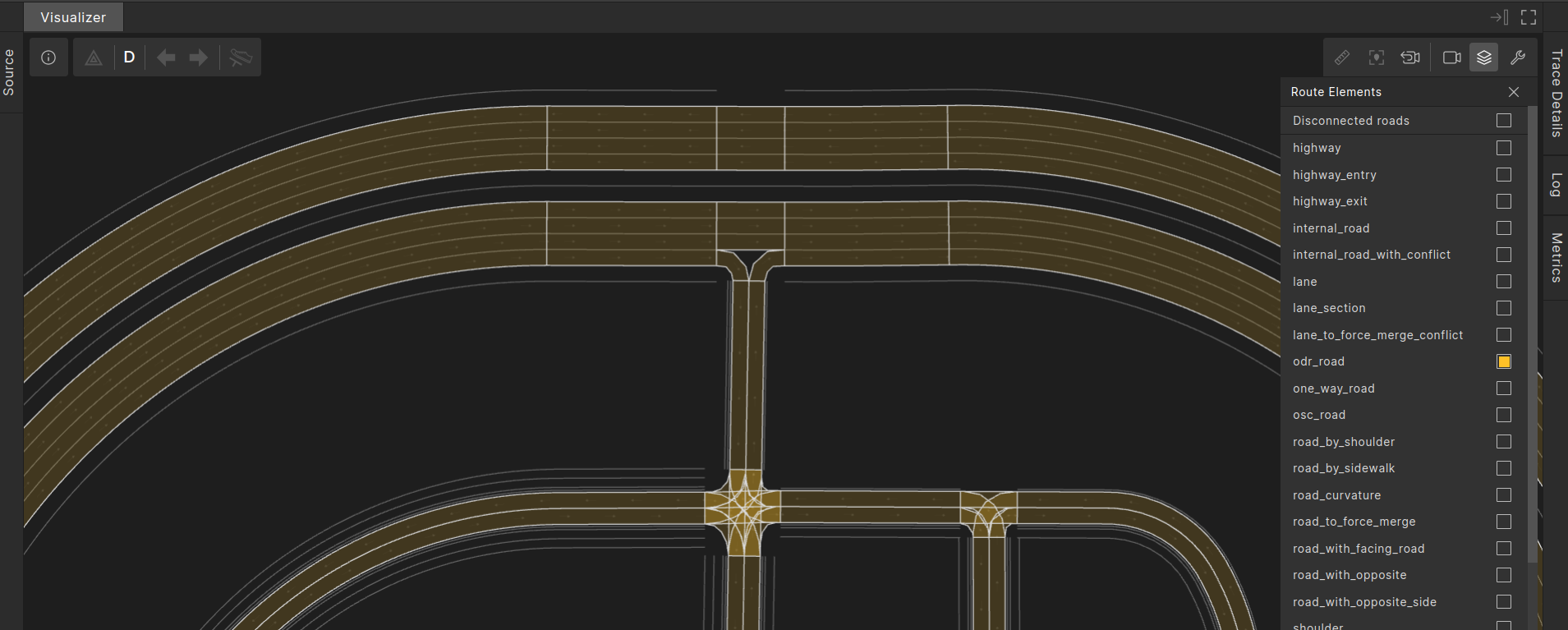

In the image below, odr_road occurrences are highlighted in yellow.

OSC definition

# odr_road - one side of an OpenDrive road. Occurrences of this road_element are only made available by open_drive msp.
#
struct odr_road inherits road_element:
    # ODR id of the road
    #
    odr_id:int

    # min ODR lane-id
    #
    min_lane_id: int

    # max ODR lane-id
    #
    max_lane_id: int

    # sub_id is -1 for the ODR right-side of the road, 1 for the ODR left-side of the road
    #
    sub_id:int

    is_in_junction: bool

Example: Start driving on a specific OpenDRIVE road and road-side

import "$FTX/env/basic/exe_platforms/model_ssp/config/model_dummy_config.osc"
import "$FTX/env/basic/msp/open_drive.osc"

extend test_config:
    set map = "$FTX_PACKAGES/maps/Town04.xodr"

scenario sut.drive_on_odr_road:
    road_277_right: odr_road with:
        # 'it.sub_id == -1' means "ODR road-side with negative lane ids".
        keep(it.odr_id == 277 and it.sub_id == -1)
    do sut.car.drive(duration: [3..5]s)with:
        along(road_277_right, start_offset: 0m, at: start)

extend top.main:
    do sut.drive_on_odr_road()
