hlm_driver behaviors

Foretellix currently provides several High-Level Models (HLMs) that are simulator-agnostic:

Foretellix Adaptive Cruise Control (ACC) Model
Foretellix Autonomous Emergency Braking (AEB) Model (forward motion)
Foretellix Emergency Steering Assist (ESA) Model
Foretellix Lane Centering Assist (LCA) Model
Foretellix Lane Support System (LSS) Model
Foretellix Speed Assist System (SAS) Model

Foretellix also supports several simulator-specific SUT models:

Foretellix Active Lane Change Assist (ALCA) Model for SUMO
Foretellix Blind Spot Monitoring (BSM) Model for SUMO
Foretellix Rear Autonomous Emergency Braking (AEB) Model for Carla (reverse motion)

For information on how to integrate a Foretellix SUT Model, see Using a Foretellix SUT Model.

Foretellix Adaptive Cruise Control (ACC) Model

The Foretellix ACC Model controls the vehicle's speed in order to achieve the target speed given by either the human driver or road signs (when in intelligent Adaptive Cruise Control (iACC) mode). The Foretellix ACC Model controls the throttle and brake pedals while the human driver (modeled by Foretify) controls the steering wheel.

ACC states

The ACC state is captured in sut.car.state.vehicle_indicators.acc_state_v2. There are five ACC states as defined by the acc_state_v2 enum:

OFF: ACC is turned off.
STANDBY: ACC is waiting for a SET command. It does not control the speed.
ACTIVE_CC: ACC controls the speed, with the target speed coming either from the driver or from road signs.
ACTIVE_FOLLOWING: ACC controls the vehicle's speed, with the target speed determined by the lead vehicle. ACC also keeps the safety_time_gap set by the human driver.
ACTIVE_STOPPED: ACC is standing still after the lead vehicle has stopped for more than active_stopped_timeout or the longitudinal speed of the lead vehicle is below active_stopped_speed_threshold.

The table below shows the state machine transitions. The left column is the from state; the top row is the to state.

	OFF	STANDBY	ACTIVE_CC	ACTIVE FOLLOWING	ACTIVE STOPPED
OFF	-	main button	N/A	N/A	N/A
STANDBY	main button	-	set button	set button and lead vehicle is slower than target cruise speed	N/A
ACTIVE_CC	main button	cancel button or brake command	-	lead vehicle is slower than target cruise speed	N/A
ACTIVE FOLLOWING	main button	cancel button or brake command	lead vehicle disappeared and some predefined time has passed	-	lead vehicle has stopped for predefined amount of time
ACTIVE STOPPED	main button	cancel button or brake command	resume button or throttle command	(resume button or throttle command) and lead vehicle is slower than target cruise speed

ACC interface

The ACC button press actions are modeled as scenarios:

press_ACC_main_button() switches ACC from OFF to STANDBY mode or from STANDBY or an ACTIVE mode to OFF.
press_ACC_resume_button() switches ACC from ACTIVE_STOPPED to ACTIVE_CC or ACTIVE_FOLLOWING.
press_ACC_cancel_button() switches ACC from an ACTIVE state to STANDBY.
press_ACC_set_button(cruise_speed: <speed\>, safety_time_gap: <acc_safety_time_gap\>, use_road_speed_limit: <bool\>) sets the cruise speed.

Parameter name	Dype	Description	Default value
cruise_speed	speed	The desired cruise speed. Should not be set if the current speed is the desired target cruise speed.	current speed
safety_time_gap	enum	The time gap (short, medium, long, or extra_long) between the ACC HLM and the position of the lead-vehicle if the lead vehicle traveling below the `cruise_speed`.	medium
use_road_speed_limit	bool	A flag to activate iACC mode	false

Note

In iACC mode, the ACC uses the road's speed limit to set the target cruise speed. If iACC is turned on with a specified cruise_speed, the ACC takes the minimum of the two as the final target cruise speed.

These buttons are defined in $FTX/env/basic/adas_hlm_imps/ACC/acc_hlm_imp.osc. To use this interface, you must import this file into the test.

ACC configuration parameters

You can configure the ACC parameters by constraining the fields of the vehicle's hlm_driver.acc_behavior.acc_behavior_params.

OSC2 code: configure ACC params

extend top.main:
    def post_plan() is also:
        sut.car.hlm_driver.acc_behavior.acc_behavior_params.max_deceleration = 5mpsps

Parameter name	Type	Description	Default value
short_safety_time	time	The time required to reach the lead-vehicle's current position that ACC keeps when safety_time_gap is set to `short`.	1.3s
medium_safety_time	time	The time required to reach the lead-vehicle's current position that ACC keeps when safety_time_gap is set to `medium`.	1.8s
long_safety_time	time	The time required to reach lead-vehicle's current position that ACC keeps when safety_time_gap is set to `long`	2.3s
extra_long_safety_time	time	The time required to reach lead-vehicle's current position that ACC keeps when safety_time_gap is set to `extra_long`	3s
safety_distance	length	The minimum distance that the ACC keeps from the current position of the lead vehicle regardless of the speed of the ACC or the lead_vehicle.	10meter
pedal_command_tolerance	float	The minimum pedal command value for the throttle or brake that is required in order to be considered a real command and not just noise.	0.01Nm
trajectory_duration	time	The duration of the trajectories that ACC generates.	1.0second
max_deceleration	acceleration	The maximum deceleration value that ACC can apply without causing discomfort. Currently ACC uses `vehicle.physical.min_acceleration`. For the ACC HLM, this is a positive value, although in other contexts it is negative.	4mpsps
max_acceleration	acceleration	The maximum asceleration value that ACC can apply without causing discomfort. Currently ACC uses `vehicle.physical.max_acceleration`.	2mpsps
look_ahead_distance	length	How far ahead ACC looks for objects.	70meter
width_inflation_ratio	float	The width factor for front ROI, specifying how much the ROI is inflated in relation to the car's width.	1.2
collision_detection_time_resolution	time	How far ahead in time the ACC looks into the future of objects inside the front ROI.	0.1second
active_stopped_timeout	time	ACC enters ACTIVE_STOPPED state if the lead vehicle is at standstill for longer than this value.	3second
active_stopped_speed_threshold	speed	Longitudinal speed lower than this value is considered standstill.	0.01mpsps

Foretellix Autonomous Emergency Braking (AEB) Model

The Foretellix AEB Model performs emergency braking if a possible collision is detected.

AEB states

There are three states for AEB as defined by the aeb_state enum:

off: The AEB function is not activated.
active: The AEB function is on standby.
engaged: The AEB function is performing emergency braking.

The state is captured in top.sut.car.state.vehicle_indicators.aeb_state.

AEB interface

The AEB button press action is modeled as a scenario:

request_AEB_mode(state: <aeb_state\>)

The aeb_state parameter is required and is one of off or active.

This button is defined in $FTX/env/basic/adas_hlm_imps/AEB/aeb_hlm_imp.osc. To use this interface, you must import this file into the test.

AEB configuration parameters

You can configure the AEB parameters by constraining the fields of the vehicle's hlm_driver.aeb_behavior.aeb_behavior_params.

OSC2 code: configure AEB params

extend top.main:
    def post_plan() is also:
        sut.car.hlm_driver.aeb_behavior.aeb_behavior_params.roi_length_increase = 2.1m

Parameter name	Type	Description	Default value
minimum_standstill_trajectory_duration	time	The minimal duration (horizon time) of the trajectory generated by AEB when engaged, preventing a zero-time duration when the speed is zero.	0.5second
roi_length_increase	length	How much the frontal ROI is inflated in relation to the braking distance.	2.0m
width_inflation_ratio	float	How much the frontal ROI width is inflated in relation to the car's width.	1.2
collision_detection_time_resolution	time	The time steps that AEB looks into the future of objects inside the front ROI.	0.1second

Foretellix Rear Autonomous Emergency Braking (AEB) Model for Carla

The Foretellix rear AEB Model performs emergency braking if driving in reverse and an obstacle is detected. When using the Foretellix Rear AEB Model, use a line_shape defined with direction=backwards.

Rear AEB states

There are three states for the AEB defined under top.sut.car.state.vehicle_indicators.rear_aeb_state as a rear_aeb state enum:

OFF - rear AEB module is not activated.
ACTIVE - rear AEB is activate, and no possible collision is detected.
ENGAGED - rear AEB is braking due to detection of a possible collision.

Rear AEB alert

The state of the AEB rear alarm is captured in sut.car.state.vehicle_indicators.aeb_rear_alarm. When true, the alarm is active; when false, inactive.

Rear AEB interface

To activate the Rear AEB function, call sut.car.request_rear_AEB_mode(state: active).

To de-activate the Rear AEB function, call sut.car.request_rear_AEB_mode(state: off).

These buttons are defined in $FTX/env/basic/driver_dut_imps/rear_AEB/rear_aeb_drive_imp.osc. To use this interface, you must import this file into the test.

Foretellix Active Lane Change Assist (ALCA) Model for SUMO

ALCA states

OFF
STANDBY
ACTIVE
PREPARE
ALCA_RETURN

ALCA interface

To activate the ALCA function, call sut.car.request_ALCA_on().

To de-activate the ALCA function, call sut.car.request_ALCA_off().

This button is defined in $FTX/env/basic/driver_dut_imps/ALCA/alca_drive_imp.osc. To use this interface, you must import this file into the test.

BSM states

OFF
ACTIVE
ENGAGED

BSM interface

To activate the BSM function, call sut.car.request_BSM_mode(active).

To de-activate the ALCA function, call sut.car.request_BSM_mode(off).

This button is defined in $FTX/env/basic/driver_dut_imps/BSM/BSM_drive_imp.osc. To use this interface, you must import this file into the test.

Foretellix Emergency Steering Assist (ESA) Model

The Foretellix ESA Model helps the human driver (the Foretellix Human Driver Model) to perform an evasive steering maneuver in order to prevent a longitudinal collision.

There are three conditions that need to be met for ESA to engage:

A longitudinal collision is about to happen.
The Foretellix Human Driver Model has initiated an evasive steering maneuver.
ESA is active.

If all the above conditions are met, ESA generates a new trajectory for the vehicle with the following properties:

lon_pos is the current_speed * config.trajectory_duration
lon_speed is the current longitudinal speed.
lat_pos is the adjacent lane's center line on the SUT's route.
lat_speed is 0.

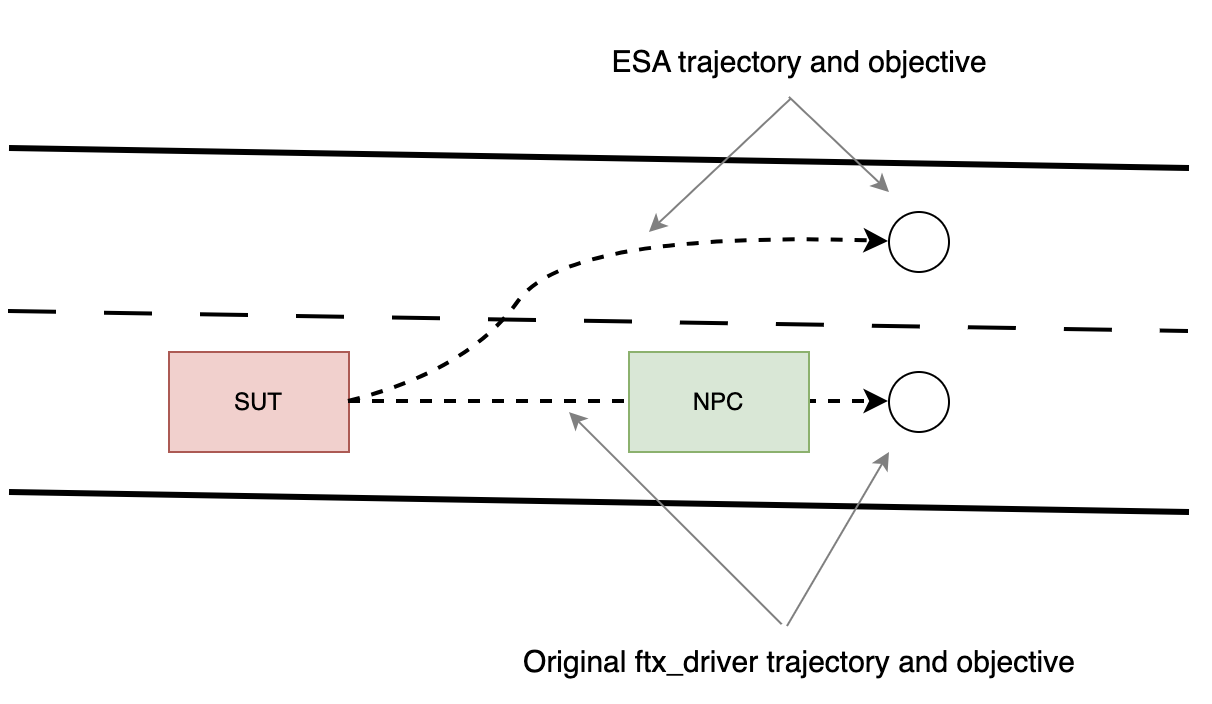

Figure 4: Original and modified vehicle trajectory

Current limitations

The ESA Model does not anticipate lateral collisions, so it might steer the vehicle into an object in the adjacent lane. Similarly, the ESA Model does not verify that the adjacent lane is a driving lane.
If you use a shape to describe the evasive maneuver of the human driver, adas_override behavior is not active. As a result, steering control is not disabled. The Foretellix Human Driver Model continues to send steering commands, but they are discarded by the ESA Model.
Using either a shape or just a simple lane change in order to describe a steering command by the human driver may or may not work. Steering commands that apply torque, when supported in a future Foretify release, will provide a more reliable way to represent a human driver's steering command.

ESA state machine

The ESA state machine has the following states:

OFF - ESA is turned off.
ACTIVE - ESA is turned on but not actively engaged in steering the vehicle.
ENGAGED - ESA is actively controlling the steering wheel.
COOL_DOWN - ESA has given up control of the steering wheel because of the human driver's resistance.

ESA state machine transition table

	OFF	ACTIVE	ENGAGED	COOL_DOWN
OFF	-	request_ESA_mode(active)	-	-
ACTIVE	request_ESA_mode(off)	-	A possible collision was detected and the human driver initiated an evasive steering maneuver.	-
ENGAGED	request_ESA_mode(off)	ESA finished the evasive steering maneuver.	-	The human driver applied enough torque on the steering wheel for a duration long enough. Both values are configurable.
COOL_DOWN	request_ESA_mode(off)	Cool down duration has completed.	-	-

ESA interface

The ESA button press action is modeled as a scenario. You can use this scenario to activate or deactivate the ESA Model or a customer SUT.

sut.car.request_ESA_mode(state: active) activates the ESA function.
sut.car.request_ESA_mode(state: off) deactivates the ESA function.

This button is defined in $FTX/env/basic/adas_hlm_imps/ESA/esa_hlm_imp.osc. To use this interface, you must import this file into the test.

ESA configuration parameters

Parameter name	Type	Description	Default value
trajectory_duration	time	The duration of the trajectories that LSS will create.	1[s]
engaged_duration	time	The duration of time the vehicle must drive safely on the adjacent lane before changing state back to ACTIVE.	2[s]
cool_down_duration	time	The duration of time that ESA must remain in COOL_DOWN state before changing state back to ACTIVE.	5[s]
evasive_torque_threshold	float	The magnitude of torque that the human driver must apply in order to initiate the evasive maneuver by ESA.	2[Nm]
evasive_torque_duration	time	The duration of continuous torque at higher than evasive_torque_threshold that the human driver must apply in order to initiate the evasive maneuver by ESA.	0.1[s]
override_torque_threshold	float	The magnitude of torque that the human driver must apply in order to overcome the ESA's steering control, thus forcing ESA to change state to COOL_DOWN. (Not yet supported)	8[Nm]
override_torque_duration	time	The duration of continuous torque at higher than override_torque_threshold that the human driver must apply in order to overcome the ESA's steering control, thus forcing ESA to change state to COOL_DOWN. (Not yet supported)	1[s]
horizon_time	time	The duration into the future starting from now that objects will be looked for when checking for longitudinal collision.	5[s]
time_resolution	time	Time resolution when searching for an object in the time range of [now, now + horizon_time].	0.5[s]

Foretellix Lane Centering Assistant (LCA) Model

The Foretellix LCA Model steers the vehicle to stay on the middle of the lane.

LCA states

There are three states for LCA as defined by the lca_state enum:

off: The LCA function is turned off.
active: The LCA function is actively steering the car.
engaged: This value is not used in this release.

The state is captured in top.sut.car.state.vehicle_indicators.lca_state.

LCA interface

The LCA button press action is modeled as two scenarios:

request_LCA_on()
request_LCA_off()

These buttons are defined in $FTX/env/basic/adas_hlm_imps/LCA/lca_hlm_imp.osc. To use this interface, you must import this file into the test.

LCA configuration parameters

You can configure the LCA parameters by constraining the fields of the vehicle's hlm_driver.lca_behavior.lca_behavior_params.

OSC2 code: configure LCA params

extend top.main:
    def post_plan() is also:
        sut.car.hlm_driver.lca_behavior.lca_behavior_params.max_trajectory_duration = 1.1s

Parameter name	Type	Description	Default value
max_trajectory_duration	time	The duration (horizon time) of trajectory that LCA will generate.	1.0second
min_trajectory_duration	time	LCA updates previously set objective if the time to the objective's end time is less than this value	1.0second

Foretellix Lane Support Systems (LSS) Model

The Foretellix LSS Model is a collection of lane functions that respond to the lateral movement, or lane drift, of a vehicle. A lane drift occurs when the lane position of one of the front corners of the vehicle enters a different lane from the center of the vehicle, as shown in the figure below.

The Foretellix LSS Model includes three separate lane functions:

Lane Departure Warning (LDW)

LDW issues an alert when an unintentional lane drift is detected. A lane drift is considered unintentional if the turn signal is not activated in the direction of the drift. This function is a passive function, meaning that the function applies no torque on the steering wheel.
Lane Keeping Assist (LKA)

LKA acts to prevent an unintentional lane drift by applying a relatively small torque on the steering wheel, just enough to keep the vehicle in the original lane.
Emergency Lane Keeping (ELK)

ELK acts to prevent an intentional lane change if a possible collision is detected. ELK acts within a configurable Region Of Interest (ROI). The diagram below shows the left ROI of a vehicle.

Figure 6: ELK Region Of Interest (ROI)

Note

Unlike some ADAS functions that fully control the pedals or steering wheel, LSS shares control of the steering wheel with the human driver. When engaged, LSS gives up control of the steering wheel if the driver applies enough torque for enough time. There are separate configuration parameters for LKA and ELK modes for torque threshold and duration.

LSS state machine

The following diagram shows the state machine transitions for the LSS HLM.

The states of the LSS state machine are:

OFF: LSS is turned off.
ACTIVE: LSS is turned on, but no warning is issued, and no steering command is applied.
ENGAGED: LSS is controlling the steering wheel.
COOL_DOWN: When the ftx_driver, playing the role of a human driver, claims back control of the steering wheel by applying a large enough torque while LSS is engaged. LSS transitions to a cool-down state for a configurable amount of time.

The state transitions are described in the following table.

	OFF	ACTIVE	ENGAGED	COOL_DOWN
OFF	-	request_LSS_mode(active)	-	-
ACTIVE	request_LSS_mode(off)	-	Unintentional drifting was detected (LDW, LKA) or Dangerous intentional lane change was detected. (ELK)	-
ENGAGED	request_LSS_mode(off)	LSS finished steering the vehicle back to the original lane.	-	The driver applied enough torque on the steering wheel for a long enough time. Both values (torque and duration) are configurable.
COOL_DOWN	request_LSS_mode(off)	Cool down duration has ended.	-	-

LSS interface

The human driver's button press action is modeled as the sut.car.request_LSS_mode() scenario. You can use this scenario to interact with an LSS function, either the LSS HLM or an SUT.

This button is defined in $FTX/env/basic/adas_hlm_imps/LSS/lss_hlm_imp.osc. To use this interface, you must import this file into the test.

The request_LSS_mode() parameters are shown in the following table.

Name	Type	Description	Required	Default
lss_state	enum	Set the desired state (OFF / ACTIVE)	Yes	-
use_elk	bool	Flag to turn on ELK mode	No	false

Examples

OSC2 code: activate or deactivate LSS

# Turn on LSS:
sut.car.request_LSS_mode(state: active)

# Turn on LSS with ELK:
sut.car.request_LSS_mode(state: active, use_elk: true)

# Turn off LSS:
sut.car.request_LSS_mode(state: off)

Additional coding requirements for ELK

In order to test the ELK function properly, there are some additional coding requirements:

In order to allow the ELK function, once engaged, to completely control the steering, you must disable steering control for the ftx_driver:

OSC2 code: disable steering for ELK

extend top.main:
    def post_plan() is also:
        # Disabling the steering once ELK engages.
        sut.car.ftx_driver.adas_override_behavior.adas_steering_override_reaction.steering_control = disable

You must use the avoid_collisions(false) modifier for the drive when the lane change attempt occurs. Doing so prevents the ftx_driver from trying to avoid a possible collision.

The lane() modifier must be tagged with override(run_mode: best_effort) or the scenario may fail if ELK succeeds in preventing the lane change.

OSC2 code: disable CA during lane change

lane_change_attempt: sut.car.drive(duration: 10second) with:
    position(0meter, ahead_of: car1, at: start)
    speed(speed: 0mps, faster_than: car1, at: start)
    speed(speed:  20mps, at: end)
    lane(1, at: start)
    l: lane(3, at: end)
    avoid_collisions(false)
    override(l, run_mode: best_effort)

LSS configuration parameters

You can configure the LSS parameters by constraining the fields of the vehicle's hlm_driver.lss_behavior.lss_behavior_params.

OSC2 code: configure LSS params

extend top.main:
    def post_plan() is also:
        sut.car.hlm_driver.lss_behavior.lss_behavior_params.cool_down_duration = 4s

Parameter name	Type	Description	Default
trajectory_duration	time	The duration of the trajectories that LSS creates.	2second
engaged_duration	time	The duration of time the vehicle has to drive in the original lane before the state changes back to ACTIVE.	2second
cool_down_duration	time	The duration that LSS stays in COOL_DOWN state before the state changes back to ACTIVE.	5second
lka_torque_threshold	float	The magnitude of torque that the driver needs to apply in order to change the state to COOL_DOWN.	3Nm
lka_torque_duration	time	The duration of continuous torque at higher than lka_torque_threshold required to change the state to COOL_DOWN.	1.0s
elk_torque_threshold	float	The magnitude of torque that the driver needs to apply in order to change the state to COOL_DOWN.	5Nm
elk_torque_duration	time	The duration of continuous torque at higher than elk_torque_threshold required to change the state to COOL_DOWN.	2s
side_roi_length_extension	length	The longitudinal length that is added to the vehicle’s length in front and in back when creating the side Region of Interest (ROI) for object detection (ELK). See Figure 6 above.	3m
side_roi_width	length	The width of the side ROI for object detection (ELK). See Figure 6 above.	3m
horizon_time	time	The duration into the future starting from now that objects are looked for (ELK).	5s
time_resolution	time	Time resolution when searching for an object in the time range of [now, now + horizon_time] (ELK).	0.5s
dist_from_lane_edge	float	The distance in lane units that LSS keeps when engaged.	0.1

LSS-ELK example

OSC2 code: test LSS-ELK function

import "$FTX/env/basic/adas_hlm_imps/LSS/lss_hlm_imp.osc"

extend test_config:
    set map = "$FTX/qa/odr_maps/straight_long_road.xodr"
    set implicits_kind = none
    set test_drain_time = 0second

extend sut_vehicle:
    # Disabling the steering once ELK engages.
    # Preventing the ftx_driver from trying to make the lane change at the second time.
    def post_plan() is also:
        ftx_driver.adas_override_behavior.adas_steering_override_reaction.steering_control = disable
        hlm_driver.lss_behavior.lss_behavior_params.engaged_duration = 8second

scenario sut.lss_hlm_elk_with_obstacle:
    LSS_speed: speed with:
        keep(it==15mps)

    car1: vehicle

    do serial():

        sut.car.request_LSS_mode(state: active, use_elk: true)

        sut.car.turn_signal(turn_signal_state: right_on)

        parallel(overlap:equal):
            car1.drive(duration: 7second) with:
                position(distance: 100m, at: start)
                speed(speed: LSS_speed, at: start)
                speed(speed: LSS_speed, at: end)
                lane(2)

            lane_change_attempt: sut.car.drive() with:
                position(0meter, ahead_of: car1, at: start)
                speed(speed: 0mps, faster_than: car1, at: start)
                speed(speed: LSS_speed, at: end)
                lane(1, at: start)
                lane(3, at: end, run_mode: best_effort)
                avoid_collisions(false)

LSS-LKA example

OSC2 code: test LSS-LKA function

import "$FTX/env/basic/adas_hlm_imps/LSS/lss_hlm_imp.osc"

extend test_config:
    set map = "$FTX/qa/odr_maps/M85_FTX_highway_figure8_R200m.xodr"
    set test_drain_time = 0second

scenario sut.lss_hlm_without_turn_signal:

    start_point: odr_road with:
        keep(start_point.odr_id == 2 and start_point.sub_id == -1)

    LSS_speed: speed with:
        keep(it in [50..60]kph)

    do serial():

        pre_lss_request: sut.car.drive(duration: [1..2]second) with:
            s1: speed(speed: LSS_speed)
            override(s1, run_mode: best_effort)
            along(start_point, at: start, start_offset: 15m)
            lane(2)

        sut.car.request_LSS_mode(state: active)

        pre_lss_drive: sut.car.drive(duration: [1..2]second) with:
            s2: speed(speed:  LSS_speed)
            override(s2, run_mode: best_effort)

        lss_drive: sut.car.drive(duration: [5..15]second) with:
            driver_controls(steering: disabled)
            s3: speed(speed:  LSS_speed)
            override(s3, run_mode: best_effort)

Foretellix Speed Assist System (SAS) Model

Speed Assist System (SAS) has two modes to help the driver control the speed of the car:

SLF raises an alert when the car is driving faster than driver-defined speed (v_adj).
SLIF raises an alert when the car is driving faster than the speed limit given by the map.

SAS states

There are three states for SAS as defined by the sas_state enum:

off: SAS is deactivated.
active: SAS is on standby.
engaged: SAS is raising an alert.

The state is captured in top.sut.car.state.vehicle_indicators.sas_state.

SAS interface

The SAS button press action is modeled as a scenario:

request_SAS_mode(state: <sas_state\>, v_adj: <speed\>, slif_mode: <bool\>)

The sas_state parameter is required and is either off or active.
The v_adj parameter is required to set SLF mode.
The slif_mode parameter is required to set SLIF mode.
You can set both v_adj and slif_mode to activate both functions.

This button is defined in $FTX/env/basic/adas_hlm_imps/SAS/sas_hlm_imp.osc. To use this interface, you must import this file into the test.

Optimal Control trajectory generator

Note

This capability is delivered as Early Access and should be used with caution; it is not yet suitable for production cases.

The Optimal Control (OC) trajectory generator creates a continuous and smooth longitudinal-lateral trajectory from the actor's current position (on the existing trajectory) to the objective, while considering constraints such as kinematic bounds (min/max speed, acceleration, etc.), road limits, and other vehicles on the road.

Other trajectory generators (Poly, Trapz) only consider the kinematic limits of the actor and, to a limited extent, the road width. As a result, they rely on the plan and driver behaviors to handle interactions with other actors (e.g., collision avoidance, bypassing) and changes in the road (e.g., lane endings). The OC generator can account for these factors during trajectory generation.

Implications for Scenario Writing

For an actor using optimal control, only the desired starting and ending positions need to be considered, without the need to create multiple phases to reach the end position.

Enable the OC generator

OSC2 code: Enable OC generator

keep(car.ftx_driver.trajectory_manager_params.oc_trajectory_generator_params.enable == true)

Parameters

The OC generator is controlled by the oc_generator_params struct, which includes the following parameters:

Parameter name	Type	Description	Default
enable	bool	A flag to enable OC generator	false

Example:

OSC code: OC Generator

scenario sut.oc_example:
    oc_vehicle: vehicle
    keep(oc_vehicle.ftx_driver.trajectory_manager_params.oc_trajectory_generator_params.enable == true)
    d_behind: length with:
        keep(it == 100meter)
    d_oc_ahead_min: length with:
        keep(it == 10meter)
    d_oc_ahead_max: length with:
        keep(it == 20meter)

    do oc_example: serial():
            init_drive: parallel(overlap: equal):
                sut.car.drive() with:
                    avoid_collisions(false)
                oc_vehicle.drive() with:
                    avoid_collisions(false)
                    position(distance: d_behind, behind: sut.car, at: start)
                    position(distance: [d_oc_ahead_min..d_oc_ahead_max], ahead_of: sut.car, at: end)
                    speed(speed: [-5..5]kph, faster_than: sut.car, at: end)
                    lane(same_as: sut.car, at: end)
            with:
                duration([15..25]s, run_mode: best_effort)

For complete example, see OC Trajectory.

Performance

Using the optimal control trajectory generator imposes a significant CPU performance cost. Therefore, it should be used only for specific actors when necessary, and never as the default trajectory generator.

Known Limitations

The OC generator does not handle junctions. If junction_behavior is engaged, the OC generator will be disabled until the behavior is deactivated.
Currently, changes in lane width or added/ending lanes are not accounted for by the generator.

hlm_driver behaviors

Foretellix Adaptive Cruise Control (ACC) Model

ACC states

ACC interface

ACC configuration parameters

Foretellix Autonomous Emergency Braking (AEB) Model

AEB states

AEB interface

AEB configuration parameters

Foretellix Rear Autonomous Emergency Braking (AEB) Model for Carla

Rear AEB states

Rear AEB alert

Rear AEB interface

Foretellix Active Lane Change Assist (ALCA) Model for SUMO

ALCA states

ALCA interface

Foretellix Blind Spot Monitoring (BSM) Model for SUMO

BSM states

BSM interface

Foretellix Emergency Steering Assist (ESA) Model

Current limitations

ESA state machine

ESA state machine transition table

ESA interface

ESA configuration parameters

Foretellix Lane Centering Assistant (LCA) Model

LCA states

LCA interface

LCA configuration parameters

Foretellix Lane Support Systems (LSS) Model

LSS state machine

LSS interface

Additional coding requirements for ELK

LSS configuration parameters

LSS-ELK example

LSS-LKA example

Foretellix Speed Assist System (SAS) Model

SAS states

SAS interface

Optimal Control trajectory generator

Implications for Scenario Writing

Enable the OC generator

Parameters
